Image of 2D-C2G31029

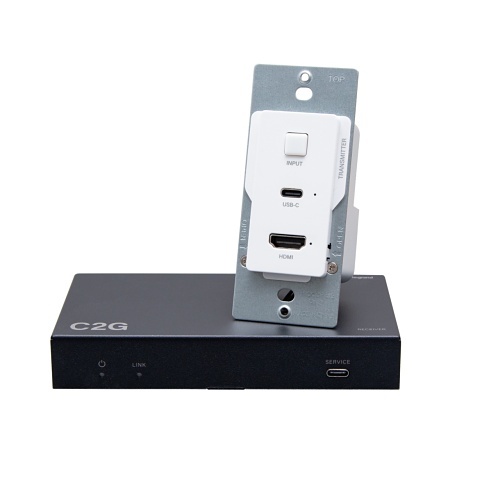

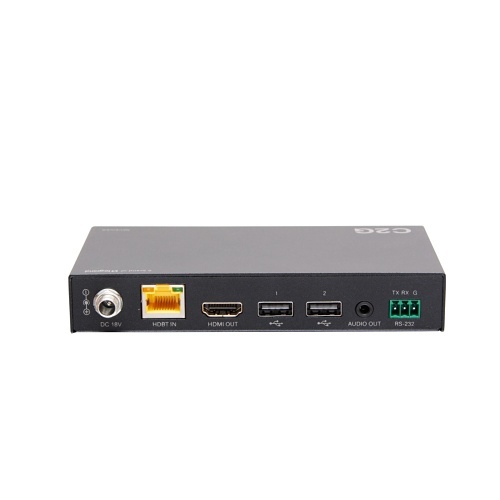

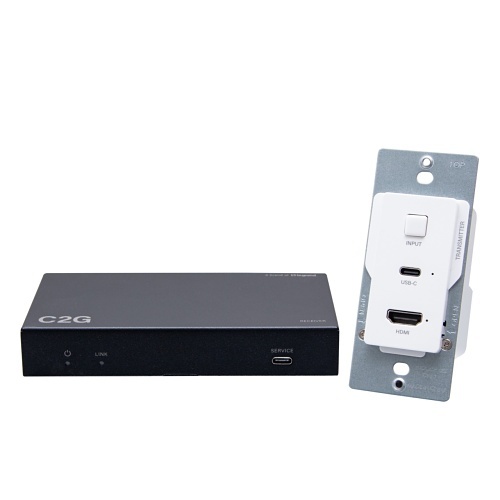

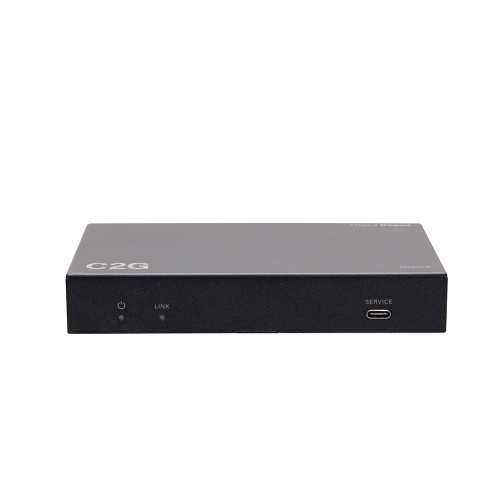

Da-Lite C2G31029 HDMI HDBaseT + USB-C Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver, 130' 4K, Black

C2G31029|2D-C2G31029

Da-Lite C2G31029 HDMI HDBaseT + USB-C Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver, 130' 4K, Black

C2G31029|2D-C2G31029

Sign In for Dealer Pricing

Become an ADI Customer
Image of 2D-C2G31029

Da-Lite C2G31029 HDMI HDBaseT + USB-C Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver, 130' 4K, Black

C2G31029 | 2D-C2G31029

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Main Features

  • Extends uncompressed HDMI and USB-C video signals, RS-232 control, and USB 2.0 data over a single CAT6a cable, supporting distances up to 230 ft (70 m) for 1080p or 130 ft (40 m) for 4K@60Hz HDMI and 4K@30Hz USB signals.
  • USB-C port supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) and USB 2.0 data transfer.
  • HDMI output on the receiver supports downscaling from 4K 60Hz to 1080p, without frame rate conversion
  • HDCP 2.2 compliant ensures a secure connection between the source and display
  • Transmitter supports manual and automatic switching (following the last-in-first-out rule)
  • Two USB-A ports on the receiver supporting output power up to 5V/1.4A
  • 18V/2.5A Universal Power Supply with US/EU/UK/AU Plug Converters Included

    • General Information

    Name: Da-Lite C2G31029 HDMI HDBaseT + USB-C Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver, 130' 4K, Black
    Category:
    UPC Code:
    Country of Origin: . Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
