Cleerline 6ACS9125OS2PE 1000' (304.8m) 6 Strand 9/125 OS2 SSF Armored Direct Burial Micro-Distribution Cable G657 A2&B2, Black

6ACS9125OS2PE|4E-6A25OS2PE

Cleerline 6ACS9125OS2PE 1000' (304.8m) 6 Strand 9/125 OS2 SSF Armored Direct Burial Micro-Distribution Cable G657 A2&B2, Black

6ACS9125OS2PE|4E-6A25OS2PE

Se connecter prix revendeur

Devenir client ADI
Image of 4E-6A25OS2PE

Cleerline 6ACS9125OS2PE 1000' (304.8m) 6 Strand 9/125 OS2 SSF Armored Direct Burial Micro-Distribution Cable G657 A2&B2, Black

6ACS9125OS2PE | 4E-6A25OS2PE

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

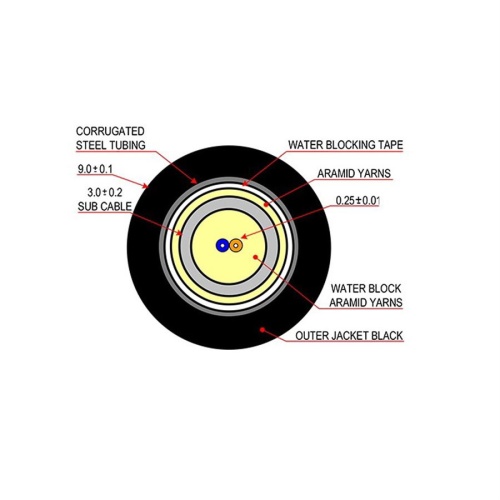

The Cleerline SSF Corrugated Armored Steel Distribution OS2 cable features a polyethylene jacket with 2 to 12 fibers and water-blocking Kevlar yarns. Its core is protected by a corrugated armored steel tube, delivering easy installation and exceptional crush resistance. Designed for direct burial, the cable's PE jacket ensures UV and moisture resistance. It supports standard 50/125 and 9/125 fiber connectors and offers high mechanical strength, fatigue durability, and bend insensitivity with up to 10,000 times the bend longevity of traditional fibers. The integral coating protects the glass without stripping, simplifying termination. Certified to meet ITU-T and IEC standards, it performs reliably under rugged environmental conditions while resisting rodents and physical abuse. Technical specs include 6 fibers, 125 µm soft peel S-type coating, 9 mm diameter, 1500 ft length, dynamic 20D bend radius, tensile load capacity up to 2000 N during installation, and operating temperature from -20 to 75°C. This cable ensures ultra low attenuation on tight bends and preserves fiber integrity throughout installation and use. Explore this solution for demanding distribution environments requiring extreme durability and protection.

Principales caractéristiques

  • Corrugated armored steel core offers high crush resistance
  • Polyethylene jacket provides UV and moisture resistance
  • Compatible with 50/125 and 9/125 fiber connectors
  • High mechanical strength with superior fatigue durability
  • Integral coating eliminates stripping, protects glass fiber
  • Up to 10000x bend longevity vs traditional fibers
  • Ultra low attenuation loss on tight bend radius
  • Designed for rugged environments including direct burial
  • Rodent resistant and crush abuse protection
  • Meets ITU-T G.657 A2, G657 B2, G.652 D and IEC 60793-2-50 standards

    • Renseignements généraux

    Name: Cleerline 6ACS9125OS2PE 1000' (304.8m) 6 Strand 9/125 OS2 SSF Armored Direct Burial Micro-Distribution Cable G657 A2&B2, Black
    Category:
    UPC Code:
    Country of Origin: Vietnam. Country of origin is subject to change.
