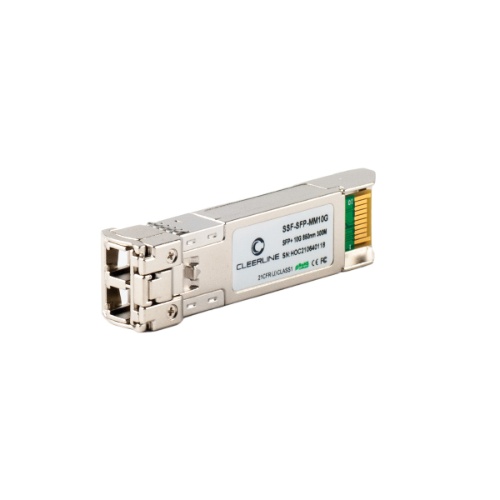

Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver, Multimode, 10GBASE-SR, 850nm, 984.25' Max Reach
SSF-SFP-MM10G|4E-SFPMM10G
Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver, Multimode, 10GBASE-SR, 850nm, 984.25' Max Reach
SSF-SFP-MM10G|4E-SFPMM10G
Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver, Multimode, 10GBASE-SR, 850nm, 984.25' Max Reach
SSF-SFP-MM10G | 4E-SFPMM10G
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
This 850 nm VCSEL 10 Gigabit SFP+ transceiver is engineered to transmit and receive optical data over 50/125 um or 62.5/125 um multimode optical fibers, accommodating 2 LC connectors. Compliant with SFI electrical interface standards, it features a transmitter input and receiver output impedance of 100 ohms differential with internal AC coupling to ensure precise signal quality and reduced EMI. Operating under IEEE 802.3ae 10GBASE-SR and MSA SFF-8431 norms, this transceiver supports 10.3125 Gbps speed up to 300 meters on 2000 MHz/km multimode fiber. Its all-metal housing enhances EMI performance, and the module operates reliably within 0 to 70 degrees Celsius. The device supports advanced firmware for customer system encryption storage and is hot pluggable for efficient deployment. Power supply ranges from 3.135 to 3.465 V, measuring 57 mm by 13.3 mm. Note: This transceiver is not compatible with HP devices. Ideal for high-density network environments, it delivers cost-effective, high-bandwidth connectivity. Experience enhanced networking performance today with this robust SFP+ solution.
Principales caractéristiques
Renseignements généraux
Name: Cleerline SSF-SFP-MM10G 10G SFP+ Transceiver, Multimode, 10GBASE-SR, 850nm, 984.25' Max Reach
Category:
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Spécifications
ADI Numéro du produit 4E-SFPMM10G Code fabricant SSF-SFP-MM10G Marque Cleerline
Fibre optique Multimode
