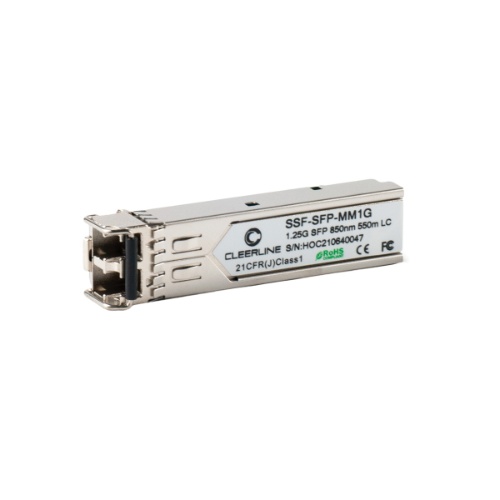

Image of 4E-SFPMM1G

Cleerline SSF-SFP-MM1G 1000Base-SX SFP Transceiver Multimode 850nm 550m with DDM, LC Connector

SSF-SFP-MM1G|4E-SFPMM1G

Cleerline SSF-SFP-MM1G 1000Base-SX SFP Transceiver Multimode 850nm 550m with DDM, LC Connector

SSF-SFP-MM1G|4E-SFPMM1G

Se connecter prix revendeur

Devenir client ADI
Image of 4E-SFPMM1G

Cleerline SSF-SFP-MM1G 1000Base-SX SFP Transceiver Multimode 850nm 550m with DDM, LC Connector

SSF-SFP-MM1G | 4E-SFPMM1G

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The SSF-SFP-MM1G transceiver is a high-performance, cost-effective optical module designed to support data rates of 1.25 Gbps with a transmission distance up to 550 meters over multimode fiber. It features 850 nm VCSEL laser and a PIN photodetector integrated with a trans-impedance preamplifier, housed in a compact form factor measuring 57 mm by 13.7 mm. The module supports dual LC connectors and conforms to the 1000Base-SX standard for short-range connections. Compliant with SFP Multi-Source Agreement (MSA) and SFF-8472 standards, it includes digital diagnostic monitoring with internal or external calibration. It operates on a single 3.3 V power supply with a 300 mA amperage rating and supports various operating temperature ranges: standard (0 to 70°C), extended (-20 to 85°C), and industrial (-40 to 85°C). This transceiver is suitable for Gigabit Ethernet, Fiber Channel, switch-to-switch interfaces, switched backplane applications, router/server interfaces, and other optical transmission systems. Note: This product is not compatible with HP devices and is RoHS compliant. Explore the reliability and efficiency of the SSF-SFP-MM1G transceiver for your networking needs today.

Principales caractéristiques

  • Supports 1.25 Gbps data rate for high-speed transmission
  • Operates with 850 nm VCSEL laser and PIN photodetector
  • Compatible with SFP MSA and SFF-8472 standards
  • Includes duplex LC connectors for fiber optic connectivity
  • Transmission distance up to 550 m with 50/125 um multimode fiber
  • Supports transmission distance of 275 m with 62.5/125 um multimode fiber
  • Operates on a 3.3 V single power supply
  • Wide operating temperature range from -40°C to +85°C for industrial use
  • Meets class I laser safety requirements
  • Provides digital diagnostic monitoring with internal/external calibration

    • Renseignements généraux

    Name: Cleerline SSF-SFP-MM1G 1000Base-SX SFP Transceiver Multimode 850nm 550m with DDM, LC Connector
    Category:
    UPC Code:
    Country of Origin: China. Country of origin is subject to change.
