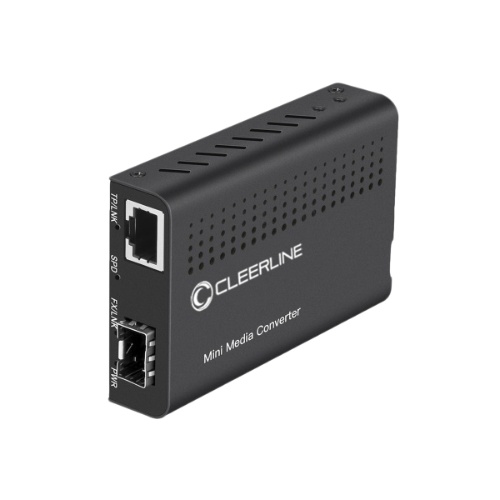

Image of 4E-SFPRJ451G

Cleerline SSF-SFP-RJ45-1G Gigabit Media Converter, 10/100/1000BASE-T to 100/1000BASE-X SFP Slot

SSF-SFP-RJ45-1G|4E-SFPRJ451G

Cleerline SSF-SFP-RJ45-1G Gigabit Media Converter, 10/100/1000BASE-T to 100/1000BASE-X SFP Slot

SSF-SFP-RJ45-1G|4E-SFPRJ451G

Sign In for Dealer Pricing

Become an ADI Customer
Image of 4E-SFPRJ451G

Cleerline SSF-SFP-RJ45-1G Gigabit Media Converter, 10/100/1000BASE-T to 100/1000BASE-X SFP Slot

SSF-SFP-RJ45-1G | 4E-SFPRJ451G

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SSF-SFP-RJ45-1G is a non-managed media converter designed for Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X conversion. It features an SFP slot compatible with various SFP types including multimode, single mode, CWDM, DWDM, and BiDi, enabling bi-directional transmission over a single fiber strand. Configuration is facilitated by DIP switches allowing fiber port speed adjustments, LFP function activation, and selection between transparent or switching converter modes. The converter supports auto-negotiation, auto MDI/MDI-X, and VLAN pass-through for IEEE 802.1Q tags. It forwards packets up to 2048 bytes in switch mode and jumbo packets up to 9K bytes in transparent mode. The robust design includes LED indicators for power status, UTP and FX port speed, and link status. Compliance with CE and FCC, IEEE 802.3 standards ensures reliability. Physical specifications include a compact form factor (20 mm W x 60 mm D x 90 mm H), 5 VDC power supply with 1 A rating, and operating conditions from 0 to 50°C with 10-90% non-condensating humidity. Installation is straightforward, ideal for enhancing network flexibility and fiber optic integration. Experience seamless high-speed media conversion with the SSF-SFP-RJ45-1G, an efficient solution tailored for diverse Ethernet applications.

Main Features

  • Converts 10/100/1000Base-T to 100/1000Base-X SFP for versatile connectivity
  • DIP switches configure fiber speed, LFP functions, and converter modes
  • Supports all SFP types including multimode, single mode, CWDM, DWDM, and BiDi
  • BiDi enables bi-directional transmission over a single fiber strand
  • Auto-negotiation and auto MDI/MDI-X for seamless network integration
  • Supports IEEE 802.1Q VLAN tag pass-through for network segmentation
  • Forwards jumbo packets up to 9K bytes in transparent mode
  • Power, fiber, and link status LEDs for easy monitoring
  • Operates at 10/100/1000 Mbps speeds with full duplex capability
  • Compatible with multi-mode and single-mode fibers with specific wavelengths

    • General Information

    Name: Cleerline SSF-SFP-RJ45-1G Gigabit Media Converter, 10/100/1000BASE-T to 100/1000BASE-X SFP Slot
    Category:
    UPC Code:
    Country of Origin: Korea, Republic of. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
