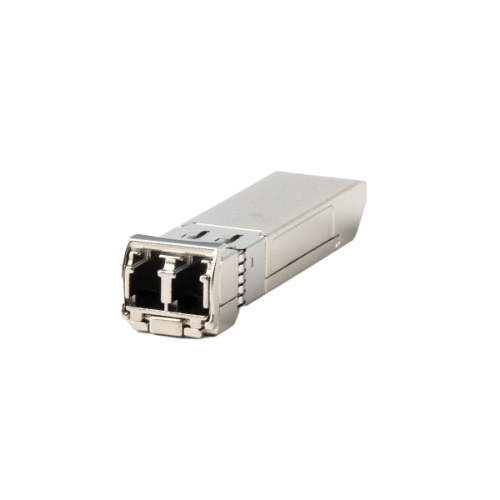

Image of 4E-SFPSM10G

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver, Single Mode, 10GBASE-LR, 1310nm, 20km

SSF-SFP-SM10G|4E-SFPSM10G

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver, Single Mode, 10GBASE-LR, 1310nm, 20km

SSF-SFP-SM10G|4E-SFPSM10G

Se connecter prix revendeur

Devenir client ADI
Image of 4E-SFPSM10G

Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver, Single Mode, 10GBASE-LR, 1310nm, 20km

SSF-SFP-SM10G | 4E-SFPSM10G

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

This 1310 nm DFB 10 Gigabit SFP+ transceiver is engineered for long-range transmission up to 20 km over single mode fibers, utilizing a Fabry-Perot laser transmitter at 1310 nm with a line rate of 10.3125 Gbps. Designed to accept dual LC connectors, its electrical interface complies with SFI specifications featuring 100 ohms differential impedance and internally AC-coupled data lines for superior signal integrity. The module ensures differential termination to minimize EMI. It operates efficiently over 200 mm of improved FR4 material or up to 150 mm of standard FR4 with one connector. The transceiver adheres to SFP MSA and SFF-8431 standards for compatibility, except with HP devices. Key features include IEEE 802.3ae 10GBASE-LR optical interface, hot pluggability, 1310 nm DFB transmitter with PIN photo-detector, and maximum link length of 20 km over SMF. It withstands operating temperatures from 0 to 70°C, offers low power consumption, and features all-metal housing for superior EMI performance. Advanced firmware enables system encryption information storage, presenting a cost-effective SFP+ solution that supports higher port densities and bandwidth. Specifications: Model SSF-SFP-SM10G, 10 Gigabit interface type, 9/125 um single-mode fiber with two strands, 1310 nm wavelength, 10.3125 Gbps transmission rate, 20 km transmission distance, dual LC connectors, 3.135 - 3.465 V power supply, and dimensions of 57 mm length by 13.3 mm height. Explore enhanced network performance with this reliable and industry-compliant transceiver, ideal for demanding long-distance fiber optic communications.

Principales caractéristiques

  • Compliant with IEEE 802.3ae 10GBASE-LR optical interface
  • Hot pluggable design for easy installation
  • 1310 nm DFB transmitter with PIN photo-detector
  • Supports maximum link length of 20 km over single mode fiber
  • Operates in temperature range 0 to 70°C
  • Low power consumption for efficiency
  • All-metal housing provides superior EMI performance
  • Supports 10.3125 Gbps transmission rate
  • Dual LC connector type for connectivity
  • Compatible with SFP Multi-Source Agreement (MSA) and SFF-8431 standards

    • Renseignements généraux

    Name: Cleerline SSF-SFP-SM10G 10G SFP+ Transceiver, Single Mode, 10GBASE-LR, 1310nm, 20km
    Category:
    UPC Code:
    Country of Origin: United States. Country of origin is subject to change.
