Image of 5T-MRI4040

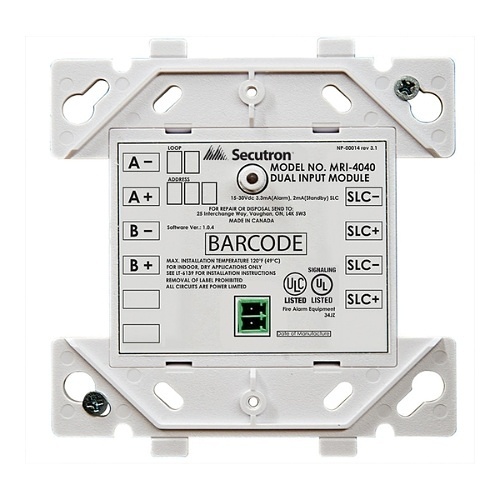

Secutron MRI-4040 Dual Input Module

MRI-4040|5T-MRI4040

Secutron MRI-4040 Dual Input Module

MRI-4040|5T-MRI4040

Se connecter prix revendeur

Devenir client ADI
Image of 5T-MRI4040

Secutron MRI-4040 Dual Input Module

MRI-4040 | 5T-MRI4040

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The MRI-4040 Dual Input Module is an intelligent addressable device designed to be used with a compatible fire alarm control unit, providing a high rate of exchanged information with fast and secure responses. The module can be used for alarm, supervisory, or monitor type applications. The MRI-4040 Dual Input module provides two (2)independent contact monitoring circuits only utilizing one(1) address on the SLC loop. The module supports one (1) Class A or two (2) Class B inputs. When configured for Class A operation, the module provides an internal EOL resistor. When configured for Class B operation, the module monitors two (2) independent input circuits using only one (1) module address. The module has a panel controlled LED indicator. The LED flashes during normal operation and stays ON steadily when the device is in alarm condition. The address of each module is set using the MIX-4090 programmer tool. For setting the address on this device, disconnect it from the loop, or ensure that the loop to which is connected is both disconnected from the panel and shorted across the SCL+ and SLC- inputs at the device. Failing to take either of these steps may change the address programming of previously configured sensors on the loop.

Principales caractéristiques

  • Any combination of MRI-4000 series devices up to 240 can be connected on a single SLC
  • Mounts in a standard 4” square or double gang electrical back box
  • Indicating LED provides module status
  • Fast, reliable contact monitoring
  • Will automatically set inputs to single Class A or dual Class B according to the configuration sent by the fire alarm panel
  • No EOL resistor required when input is in Class A operation
  • Monitors two (2) independent circuits in Class B using one (1) module address

    • Renseignements généraux

    Name: Secutron MRI-4040 Dual Input Module
    Category:
    UPC Code: 628090283198
    Country of Origin: Canada. Country of origin is subject to change.

    Spécifications
