Image of 5T-MRI4040M

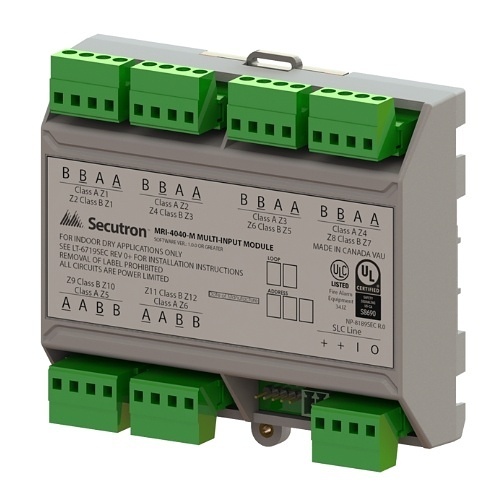

Secutron MRI-4040-M Multi Input Module

MRI-4040-M|5T-MRI4040M

Secutron MRI-4040-M Multi Input Module

MRI-4040-M|5T-MRI4040M

Se connecter prix revendeur

Devenir client ADI
Image of 5T-MRI4040M

Secutron MRI-4040-M Multi Input Module

MRI-4040-M | 5T-MRI4040M

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The MRI-4040-M Multi Input Module is an intelligent addressable device that can be used for alarm, monitor or supervisory type applications. It is designed to be used with Secutron compatible Fire Alarm Control Unit. The MRI-4040-M provides six (6) class A or twelve (12) class B inputs. If the module is configured as class A, it provides an internal EOL and when it is configured as class B, the module can monitor 12 inputs with only one address. The address of the MRI-4040-M is set by using the hand-held programmer tool MIX-4090. The module has LED indicators for each input to signal alarm (RED) or trouble (YELLOW). A green LED shows SLC communication status and finally, two yellow LEDs indicate if a short circuit has been isolated on either side of the SLC connection. The MRI-4040-M provides a fast and quick installation as it comes with plug-in terminal blocks and it can be easily mounted on the DIN rail without using any additional tool. The MRI-4040-M can be mounted on either the MMX-BB-4002R which supports up to 2 multi-modules or on the MMX-BB-4006R which allows up to 6 multi-modules. The MRI-4040-M can also be mounted on any UL/ULC listed backbox enclosure by using the mounting bracket kit.

Principales caractéristiques

  • Supports either 6 class A or 12 class B inputs
  • No EOL resistor required when input is in Class A operation
  • Monitor 12 independent input circuits with only one address when configured as class B
  • Fast, reliable contact monitoring
  • Affordable and space efficient
  • Mounting clip for DIN rail and plug-In terminal blocks for fast and easy installation
  • Each input has LED indicators to signal Alarm (RED) or Trouble (YELLOW)
  • Additional LEDs to show SLC communication status and if a short circuit has occurred
  • Compatible with MR-400, MR-401 and MMX-4000 Fire alarm control panels
  • Up to 2 modules can be mounted on UL/ULC listed backbox enclosure, MMX-BB-4002R

    • Renseignements généraux

    Name: Secutron MRI-4040-M Multi Input Module
    Category:
    UPC Code: 628090283273
    Country of Origin: Canada. Country of origin is subject to change.

    Spécifications
