Product Overview

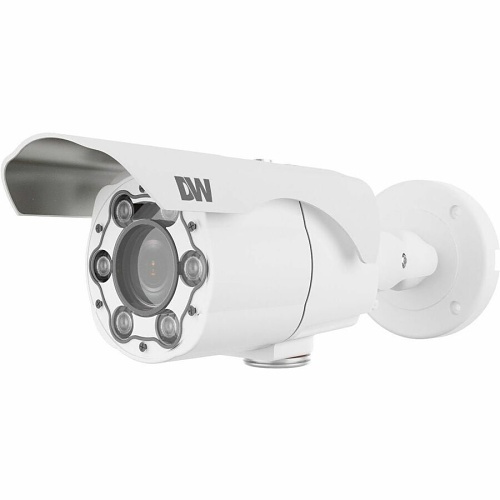

This MEGApix IP camera is your gateway to powerful video analytics features. Provides 5MP resolution at real-time 30fps. This camera includes a 6-50mm long range vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated weather resistant bullet housing.

Main Features

5MP sensor at real-time 30fps

Star-Light Plus color in near-total darkness technology

Intelligent Video Analytics (IVA) with extended features (IVA+)

Seamless integration and control of IVA rules with DW Spectrum IPVMS

Reduce false alarms

Increase your recording storage with logic rules and smart recording

Long-range vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time

True Wide Dynamic Range (WDR) for clear images in challenging light

Simultaneous streaming and multiple codec options for smart bandwidth management

Cold Start -40°F (-40°C), allowing the camera to power up in extremely cold environments

General Information

Name: Digital Watchdog DWC-MPB45WI650TW 5MP IP Outdoor Network Bullet Camera, 6-50mm Varifocal Lens, IR, White

Category:

UPC Code: 812226037285

Country of Origin: Vietnam. Country of origin is subject to change.

Specifications

ADI Numéro du produit

6K-DWC45W6TW

Brand Name

Digital Watchdog

Manufacturer Part Number

DWC-MPB45WI650TW

Product Line

MEGAPIX

Product Series

MB45

Product Type

Network Camera

Supported Network Protocols

IPv4

American Wire Gauge

18AWG

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Illumination Distance

140'

Lens Type

Varifocal, Zoom

Material

Aluminum Die-cast

Maximum Aperture

f/1.6

Maximum Frame Rate

30fps

Minimum Focal Length

6mm

Motion Detection

Yes

Night Vision

Yes

Optical Zoom

8.3x

Output Voltage

12V DC

Programmable

Yes

Protocols

Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP)

Video Formats

H.264, MJPEG

Audio Encoding

G.711

Memory Card Slot

Yes

Connectivity Technology

Wired

Image Sensor Type

CMOS

Night Vision Distance

140 ft

Wide Dynamic Range

Yes

Ingress Protection Rating

IP66

Image Sensor Size

1/2.8"

Maximum Video Resolution

2592 x 1944

Maximum Operating Temperature

122°F (50°C)

Minimum Operating Temperature

-40°F (-40°C)

Operating Humidity

10-90% (Non-condensing)

Operating Temperature (T-T)

-40-122°F

Minimum Illumination

0.0 lux (B/W)|0.08 lux (color)

Shortest Shutter Speed

Off|x15|x2|x3|x4|x5|x6|x7.5

Number of Audio Line In

Number of Audio Line Out

Focal Length

6-50 mm

Focus Modes

Auto, Manual

Maximum Focal Length

50 mm

Color

White

Durability

Weather Resistant

Form Factor

Bullet

Weight

1.98lb

Input Voltage

12V DC

Mount Type

Ceiling Mount, Wall Mount

Analog Video Signal Format

CVBS

Limited Warranty

5-Year

Country of Origin

Features

3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage

Impact Protection Rating

IK09

Indoor/Outdoor

Outdoor
