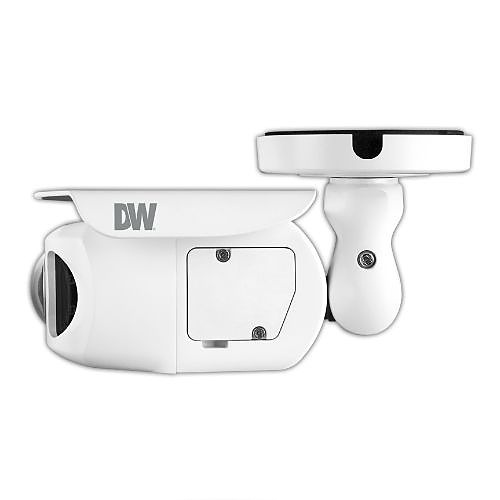

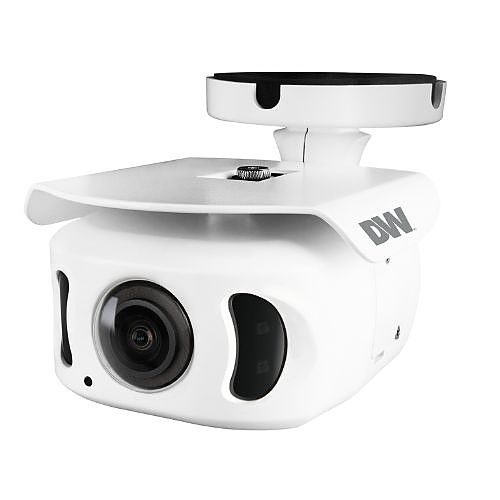

Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
DWC-XSBC08BI|6K-XSBC08BIB
Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
DWC-XSBC08BI|6K-XSBC08BIB
Digital Watchdog
Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
DWC-XSBC08BI | 6K-XSBC08BIB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This NDAA/TAA-compliant MEGApix AI ultra-wide view IP camera provides 4K resolution at real-time 30 fps with an edge AI engine onboard, placing the power of AI deep learning at your fingertips. The camera’s 2.3mm ultra-wide view lens offers edge-to-edge image clarity without pixel loss and is ideal for wide-area situational awareness.
Main Features
General Information
Name: Digital Watchdog DWC-XSBC08BI MEGApix Ai 4K Bullet IP Camera with Ultra-Wide Fixed Lens, IR and AI
Category:
UPC Code: 812226039210
Country of Origin: Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Numéro du produit 6K-XSBC08BIB Brand Name Digital Watchdog Manufacturer Part Number DWC-XSBC08BI Product Line MEGApix Ai Product Name MEGApix Ai 4K bullet IP camera with ultra-wide fixed lens, IR and an AI engine Product Type IP Camera Supported Network Protocols IPv4 Weight 2.13lb
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 8MP Field of View Horizontal, Vertical Illumination Distance 100' Lens Type Fixed Material Aluminum Die-cast Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265
Audio Encoding G.711 ulaw Memory Card Slot Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP67
Image Sensor Size 1/1.8" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -40-122°F
Longest Shutter Speed 1/15 Second Minimum Illumination 0.0 lux (B/W)|0.15 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
Aspect Ratio 4:3
Focal Length 2.3 mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 2.3 mm
Network Technology 1000 Base-T Ethernet
Depth 3.8" Durability Weather Resistant Form Factor Bullet, Panoramic Height 5.03" Width 8.75"
Frequency 50 Hz Input Voltage 12V DC
Limited Warranty 5-Year
Impact Protection Rating IK09
