Altronix T3VK7520 20-Door Altronix/HID VertX Access and Power Integration Kit, Trove3V3 with AL1024ULXB2, AL1012ULXB, (2) ACM8, ACM4, PD8UL, RSB2

T3VK7520 | AX-T3VK7520

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

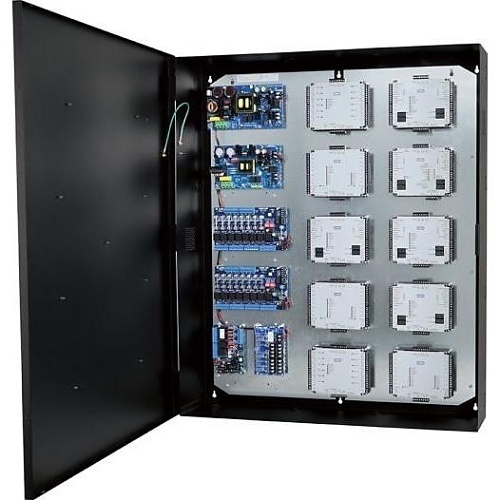

Introducing the Altronix T3VK7520, a comprehensive 20-door access and power integration kit designed for efficiency and ease of use. This all-in-one solution features a Trove3 enclosure and a TV3 VertX/Altronix backplane, equipped with dual power supplies delivering 24V DC at 10A and 12V DC at 10A. It includes two 8-output fused access power controllers, one 4-output fused access power controller, and an 8-output fused power distribution module. With the capability to support up to ten HID Aero/VertX modules, this kit is perfect for managing access across multiple doors. Simplify your installation process and reduce labor costs with the Altronix T3VK7520. Upgrade your security system today!

Main Features

  • One 24VDC and One 12VDC power supply/chargers
  • Accommodates up to Ten VertX V100, V200, V300, V1000, V2000 or Aero X100, X200, X300, X1100 modules
  • Convenient knockout configuration One single knockout 2.415" (2" Conduit)
  • Two double knockouts 1.948" (1.5" Conduit) / 1.701" (1.25" Conduit)
  • Thirteen double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
  • Supervision - AC Fail, Low Battery and Battery Presence
  • 16 AWG galvanized steel backplane simplifies board layout and wire management
  • Enclosure accommodates up to Four 12VDC/12AH batteries
  • Agency Listings All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information UL: UL294 - Access Control System, cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
  • CE European Conformity

    • General Information

    Name: Altronix T3VK7520 20-Door Altronix/HID VertX Access and Power Integration Kit, Trove3V3 with AL1024ULXB2, AL1012ULXB, (2) ACM8, ACM4, PD8UL, RSB2
    Category:
    UPC Code:
    Country of Origin: . Country of origin is subject to change.
