AVYCON

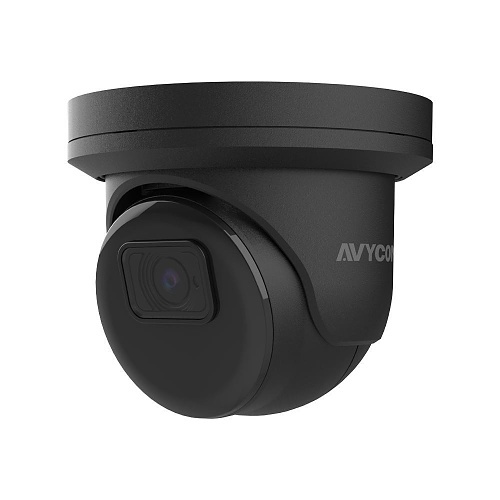

AVYCON AVC-NSE81F28-B Turret IP Camera
AVC-NSE81F28-B | BX-NSE81F28B
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The AVYCON AVC-NSE81F28 camera is a 8MP H.265 Fixed Eyeball Network Camera. This 8MP IP camera supports True Day and Night mode, PoE, up to 98ft. of Smart IR Illumination, and also incorporates an Infinite Star sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Fixed 2.8mm Lens. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities. Optional accessories for this camera include a Junction Box Mount. Includes a MicroSD memory card slot for standalone recording applications.
Main Features
General Information
Name: AVYCON AVC-NSE81F28-B Turret IP Camera
Category:
UPC Code: 608011418328
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Numéro du produit BX-NSE81F28B Brand Name AVYCON Manufacturer Avycon Manufacturer Part Number AVC-NSE81F28-B Product Line AVC Product Model AVC-NSE81F28-B Product Name Avycon AVC-NSE81F28-B 8 Megapixel Network Outdoor IR Dome Camera with 2.8mm Lens Product Type Network Camera
Effective Camera Resolution 8MP Field of View Diagonal: 126°, Horizontal: 105°, Vertical: 56° Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP67
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 140°F Minimum Operating Temperature -31°F Operating Humidity 0.95
Longest Shutter Speed 1/20000 Second Minimum Illumination 0.009 lux Shortest Shutter Speed 1/5 Second
Focal Length 2.8 mm Lens Included Yes Maximum Focal Length 2.8 mm
Color Black Durability Dustproof, Waterproof, Weather Resistant Form Factor Ceilling Mount, Wall Mount Height 2.56" Weight 0.91lb
Input Voltage 12V DC
Diameter 3.94" Mount Type Ceilling Mount, Wall Mount
Recording Formats SD
Features 3D DNR, WDR, HLC, BLC, ROI encoding, 8MP (3840x2160) at 30fps, Built-in MIC, Built-in micro SD card slot, up to 256GB, Day ans Night AUTO ICR, Fixed 2.8mm Lens (F1.6), H.265+/H.265, H.264+/H.264, MJPEG Encoding, Intelligent Analytics, Max. resolution 3840x2160
