Camden CX-1000/74 MicroMinder Delay on Release Timer (Replaces CX-1000/75)
CX-1000/74|CM-CX100074
Camden CX-1000/74 MicroMinder Delay on Release Timer (Replaces CX-1000/75)
CX-1000/74|CM-CX100074
Camden Door Controls
Camden CX-1000/74 MicroMinder Delay on Release Timer (Replaces CX-1000/75)
CX-1000/74 | CM-CX100074
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

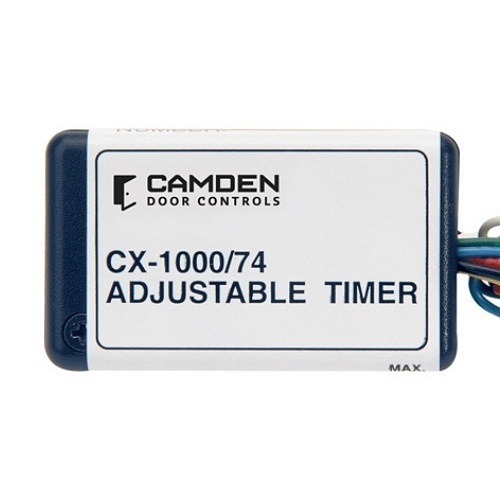

CAMDEN DOOR CONTROLS CX-1000/74 MicroMinder is a flexible easy-to-operate, delay on release timer which operates on 12 to 24 Volts AC /DC . The delay is adjustable from 1 to 30 seconds, and is accessed through a hole in the cover. The Form C relay output is rated at 3 amps @ 28 VDC . The input may be a dry contact such as a wall switch.
The compact enclosure protects the relay should it be placed inside a metal box, operator housing, or in the ceiling or wall cavity. The circuit board may be removed from the enclosure if space is at a premium.
Main Features
General Information
Name: Camden CX-1000/74 MicroMinder Delay on Release Timer (Replaces CX-1000/75)
Category:
UPC Code: 670454150035
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Numéro du produit CM-CX100074 Brand Name Camden Manufacturer Camden Door Controls Manufacturer Part Number CX-1000/74 Product Model CX-1000/74 Product Name CX-1000/74 MicroMinder Digital Timer Product Type Control
Material Plastic
Application/Usage Security Depth 2.3" Height 0.8" Width 1.3"
Country of Origin CA
