Image of HE-95606
HES by ASSA ABLOY

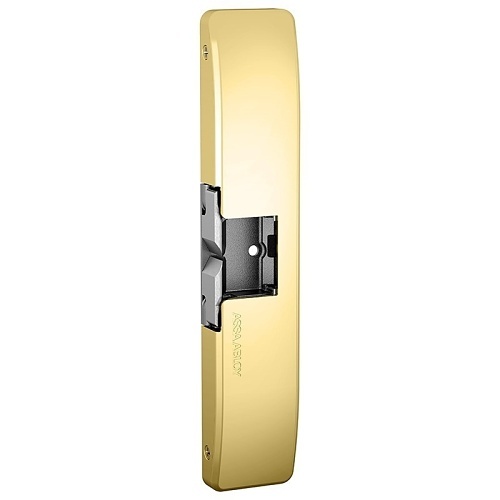

HES 9500-606 Surface Mounted Electric Strike Fire Rated, 12-24VDC, Satin Brass

9500-606 | HE-95606

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The 9500 series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.

The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

Main Features

  • Installs in metal or wood frames
  • Separate base and decorative cover for easy adjustments
  • 9500 Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe

General Information

Name: HES 9500-606 Surface Mounted Electric Strike Fire Rated, 12-24VDC, Satin Brass
Category:
UPC Code: 740090009186
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
