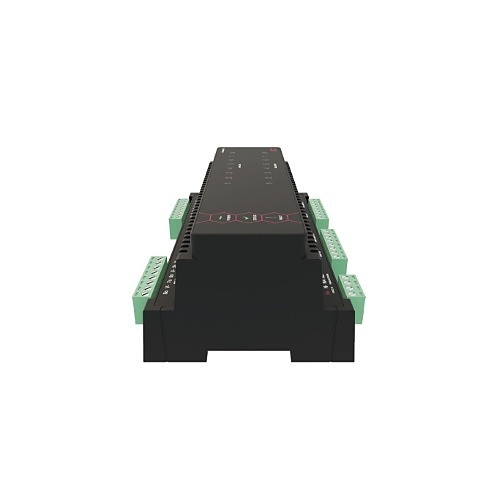

Inaxsys PRT-ADC4 4-Channel Analog Input Expander Module

PRT-ADC4|IN-PRTADC4
Acheter Inaxsys Security Systems

Inaxsys PRT-ADC4 4-Channel Analog Input Expander Module

PRT-ADC4|IN-PRTADC4

Se connecter prix revendeur

Devenir client ADI
Image of IN-PRTADC4
Inaxsys Security Systems

Inaxsys PRT-ADC4 4-Channel Analog Input Expander Module

PRT-ADC4 | IN-PRTADC4

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The Protege DIN Rail 4-Channel Analog Input Expander enhances the total integration capability of the Protege system by allowing the connection of any industrial automation sensor using the industry standard 0 to 10V signals, and self-powered 4-20mA current loop sensors. With 4 highly configurable industrial sensor analog inputs, the analog input expander allows input data to be used for comparison functions, process control calculations, variable display and alarm activation.

Principales caractéristiques

  • Automatic scaling provides a full 4 to 20mA input range on the current interface
  • 10 Bit precision analog circuitry interfaces to the real world providing a high level of accuracy
  • 4x 100% independent analog inputs provide excellent noise and interface protection
  • Each channel can be independently enabled
  • Always send and send on change can be configured per channel to ensure data is sent in the most efficient manner without continual traffic
  • Extending the Protege System with 4 analog inputs from the Protege DIN Rail 4-Channel Analog Input Expander allows convenient cost effective expansion
  • Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution
  • A single RS-485 communication interface port used for all network communication functions and interconnection to other modules
  • Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface

    • Renseignements généraux

    Name: Inaxsys PRT-ADC4 4-Channel Analog Input Expander Module
    Category:
    UPC Code: 999999351742
    Country of Origin: China. Country of origin is subject to change.
