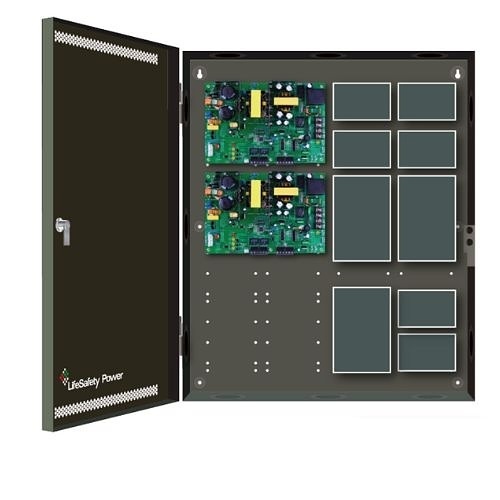

Image of J7-2502M8PNL

LifeSafety Power FPO250-2M8PNL4E4M Power Supply, 250W Single Voltage, 120VAC, 16 Managed Lock Outputs

FPO250-2M8PNL4E4M|J7-2502M8PNL

LifeSafety Power FPO250-2M8PNL4E4M Power Supply, 250W Single Voltage, 120VAC, 16 Managed Lock Outputs

FPO250-2M8PNL4E4M|J7-2502M8PNL

Sign In for Dealer Pricing

Become an ADI Customer
Image of J7-2502M8PNL
LifeSafety Power

LifeSafety Power FPO250-2M8PNL4E4M Power Supply, 250W Single Voltage, 120VAC, 16 Managed Lock Outputs

FPO250-2M8PNL4E4M | J7-2502M8PNL

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The FLEXPOWER FPO250/250-E4 is a dual voltage offline power supplybattery charger housed in a large cabinet for expansion and maximum field configuration flexibility. Listed modular accessories include: power distribution, relay based lock control, egress lock control, secondary voltage and network connection. Each power supply provides two pairs of outputs, each pair user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output of a pair provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated.

Main Features

  • Fully modular power management system
  • Multiple outputs for system power, direct lock control and accessory power distribution modules
  • Each distributed output is selectable for either continuous or switched DC in single voltage systems, or 12/24VDC in dual voltage systems
  • Fire alarm interface for egress lock control (FAI)
  • Configurable fail-safe / fail-secure modes of operation
  • AC and System fault output relays can be delayed via PowerCom
  • General Information

    Name: LifeSafety Power FPO250-2M8PNL4E4M Power Supply, 250W Single Voltage, 120VAC, 16 Managed Lock Outputs
    Category:
    UPC Code:
    Country of Origin: United States. Country of origin is subject to change.
