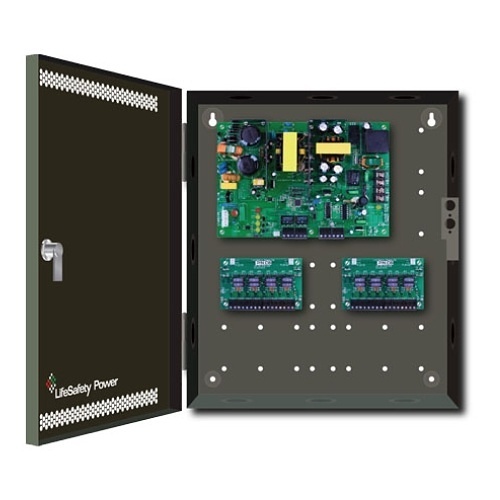

Image of J7-FPO150D8P

LifeSafety Power FPO150-2D8PE1 LifeSafety Power 16 Auxiliary Class II Distribution Outputs Access Control and CCTV Power Supply, 12A/12VDC

FPO150-2D8PE1|J7-FPO150D8P

LifeSafety Power FPO150-2D8PE1 LifeSafety Power 16 Auxiliary Class II Distribution Outputs Access Control and CCTV Power Supply, 12A/12VDC

FPO150-2D8PE1|J7-FPO150D8P

Sign In for Dealer Pricing

Become an ADI Customer
Image of J7-FPO150D8P
LifeSafety Power

LifeSafety Power FPO150-2D8PE1 LifeSafety Power 16 Auxiliary Class II Distribution Outputs Access Control and CCTV Power Supply, 12A/12VDC

FPO150-2D8PE1 | J7-FPO150D8P

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The FLEXPOWER FPO150-2D8E1 is an offline switchmode power supplybattery charger system specifically designed for multi-output general purpose power distribution, that may be used to provide distributed power for access, fire and the CCTV segments of the lifesafety industry. Providing for system power and multiple auxiliary power distribution outputs, the unit is user selectable for 12 or 24VDC and is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. Each auxiliary output is programmable for continuous power output or switched (resettable) voltage output. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.

Main Features

  • Input Voltage - 120 / 230VAC
  • Input Power (max) - 170W
  • Output Voltage - 12 or 24VDC
  • Output Current - 12 or 6A
  • Battery Charge Capacity - 80 Ah
  • Efficiency - 87 %
  • Continuous Power Outputs - 16
  • Switched Power Outputs - 16
  • Fire Alarm Interface - Yes
  • Size - 12" x 14" x 4.5"
  • General Information

    Name:LifeSafety Power FPO150-2D8PE1 LifeSafety Power 16 Auxiliary Class II Distribution Outputs Access Control and CCTV Power Supply, 12A/12VDC
    Category:
    UPC Code:
    Country of Origin:United States. Country of origin is subject to change.
