OCC

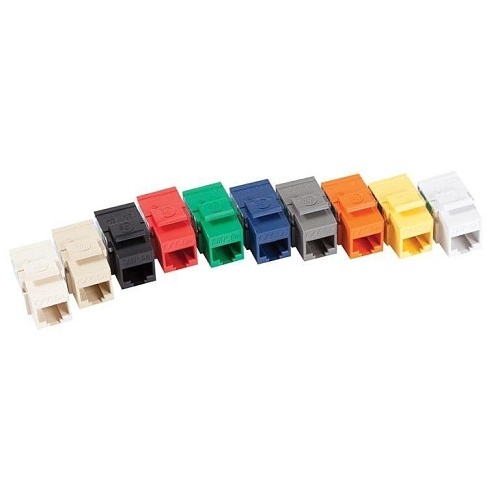

OCC KMJA5E5009 CAT5e Keystone Modular Jack
KMJA5E5009 | JQ-KMJ5E5009
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
The voice High Density (HD) modular jacks, RJ-11 keystone jack, is 6-position 6-conductor (6P6C). Its HD design offers a smaller rear footprint, maximizing space in confined work areas, and allows the use of more modular jacks within the same space. The voice High-density modular jacks are designed for business system applications. The IDC accepts 22-24 AWG solid wire and is suitable for use with Apple Talk, DSL, Voice, and Arcnet applications. Compatible with RJ11/14 and 25 modular jacks and plugs.
Principales caractéristiques
Renseignements généraux
Name: OCC KMJA5E5009 CAT5e Keystone Modular Jack
Category:
UPC Code:
Country of Origin: . Country of origin is subject to change.
Spécifications
ADI Numéro du produit JQ-KMJ5E5009 Code fabricant KMJA5E5009 Fabricant OCC Marque OCC
Type de Connecteur Catégorie 5e
Couleur Yellow
Caractéristiques 110-style IDC contacts meet TIA 568-C.2 requirements, Available in 12 color options, Backward compatible, Cat 3, and Cat 5 compliant, Compliant with Power over Ethernet (PoE+) requirements, DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C, Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC P-P, Fits all OCC Keystone faceplates and surface mount boxes, Insulation 500MOhms Minimum, Meets IEC 60603-7 requirements, Universal T568A/B wiring for easy installation Certification environnementale RoHS Compabilité 100 Mbps TP-PMD, 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, 155/622 Mbps ATM, 270 Mbps digital video, 4/16 Mbps Token Ring, Broadband Video, Voice
