Vaddio 999-99630-270 RoboSHOT 30E HDBT OneLINK Bridge Express PTZ Camera System, 30x Zoom, Black
Vaddio 999-99630-270 RoboSHOT 30E HDBT OneLINK Bridge Express PTZ Camera System, 30x Zoom, Black
Vaddio 999-99630-270 RoboSHOT 30E HDBT OneLINK Bridge Express PTZ Camera System, 30x Zoom, Black
999-99630-270 | MV-999630270
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu

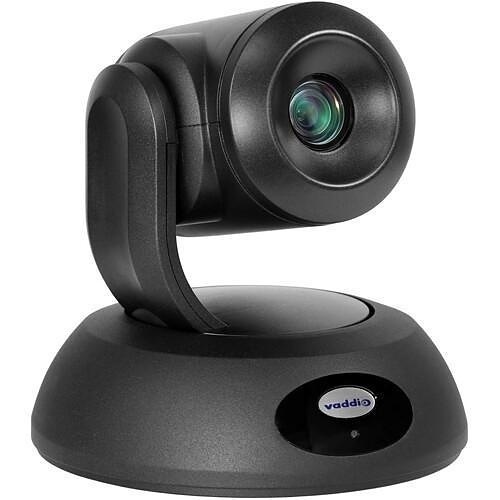

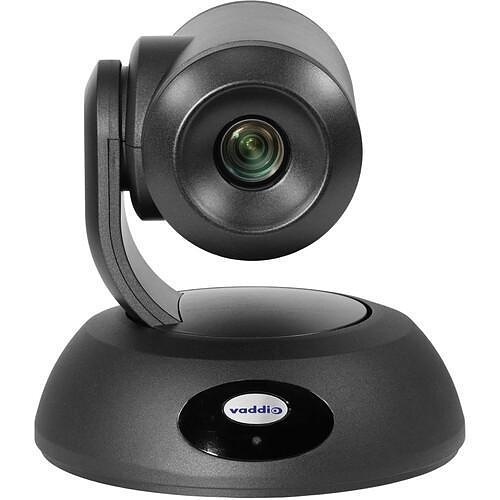

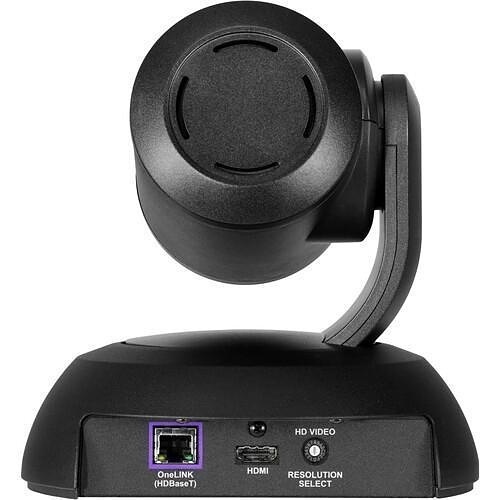

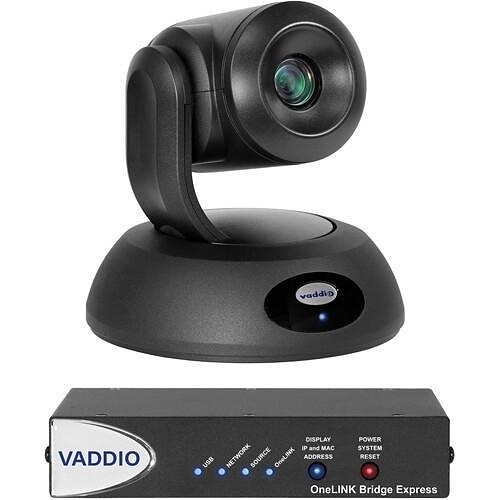

The RoboSHOT 30E HDBT OneLINK Bridge Express System from Vaddio combines a black RoboSHOT 30E HDBT IP Camera System with a OneLINK Bridge Express A/V Interface. The system captures 1080p60 video from a single 1/2.5" type CMOS sensor and transmits it up to 328' over a Cat 5e cable. The combination enables powering the camera, sending control signals, and transmitting video over a single cable. The PTZ camera features a 30x total zoom with a 70.2° wide horizontal field of view. The OneLINK Bridge Express features HDMI, USB 3.0, and IP streaming video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.
Principales caractéristiques
Renseignements généraux
Spécifications
ADI Numéro du produit MV-999630270 Code fabricant 999-99630-270 Marque Vaddio by Legrand
Champ de Vision Horizontal Zoom optique 30x
Type du capteur d'images CMOS
Conforme aux normes TAA Yes
Humidité Active 80% Temperature Maximale d'Opération 104°F Temperature Minimale d'Opération 32°F
Eclairage minimum 1.6 lux|100 lux
Certifications CE, FCC, HDBaseT, TAA
Objectif inclus Yes
Couleur White Dimensions 20 x 15 x 19" Hauteur 6.94" Largeur 7.05" Profondeur 6.75"
Garantie Limitée 2-Year
Caractéristiques Bridges audio and video for easy soft-client conferencing, Configurable audio matrix with AEC, Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m), Remote IP Management, Simple, clutter-free camera extension with HDBaseT technology, Simultaneous HDBaseT, HDMI and IP H.264 streaming, Simultaneous HDMI, USB 3.0, and IP Streaming outputs, Up to 1080p/60 resolution available over uncompressed USB Certification environnementale CE, FCC Contenu de l'emballage 4 qty 3-position phoenix-style connectors, 48V Power Supply with AC Cord Set(s), 6 ft. (1.8m) USB 3.0 cable, type A to B, EZCamera RS-232 Control Adapter, OneLINK Bridge Express Interface, RoboSHOT 30E HDBT camera (black or white), Thin Profile Wall Mount (black or white) with Mounting Hardware and Installation Manual, Vaddio IR Remote Commander Respectueux de l'environnement Yes
