Neutrik NC3FD-LX-B 3-Pole Female Receptacle, Solder Cups, Metal Housing, Gold Contacts
NC3FD-LX-B|NM-NC3FDLXB
Neutrik NC3FD-LX-B 3-Pole Female Receptacle, Solder Cups, Metal Housing, Gold Contacts
NC3FD-LX-B|NM-NC3FDLXB
Neutrik
Neutrik NC3FD-LX-B 3-Pole Female Receptacle, Solder Cups, Metal Housing, Gold Contacts
NC3FD-LX-B | NM-NC3FDLXB
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

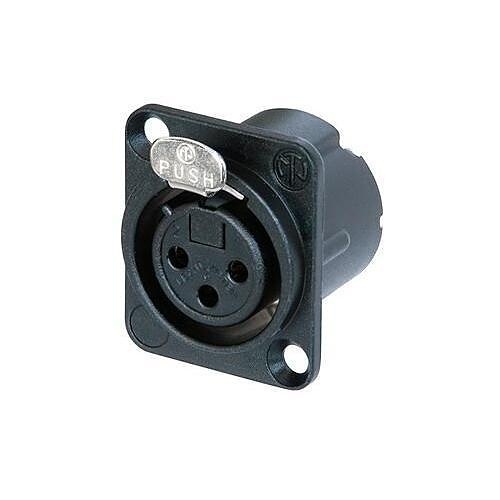

3 pole female receptacle, solder cups, black metal housing, gold contacts. The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Principales caractéristiques
- All metal housing offers best overall RF protection and electromagnetic shielding
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Larger solder contacts for easier terminatio
- D-style housing provides installation compatibility with industry standard D mounting dimensions
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Optional connection to easily join pin1 to chassis ground
Renseignements généraux
Name: Neutrik NC3FD-LX-B 3-Pole Female Receptacle, Solder Cups, Metal Housing, Gold Contacts
Category:
UPC Code:
Country of Origin: . Country of origin is subject to change.
Spécifications
ADI Numéro du produit NM-NC3FDLXB Code fabricant NC3FD-LX-B
Blindé Shielded Placage connecteur Nickel
Type de Connecteur XLR - Female
Couleur Black
Taux de tension 50V
Caractéristiques All metal housing offers best overall RF protection and electromagnetic shielding, D-style housing provides installation compatibility with industry standard D mounting dimensions, Duplex ground contact for excellent contact integrity between chassis and cable connector, Female contact incorporates a solder barrier to prevent solder running into the contact mating area, Larger solder contacts for easier termination, Optional connection to easily join pin1 to chassis ground, Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
