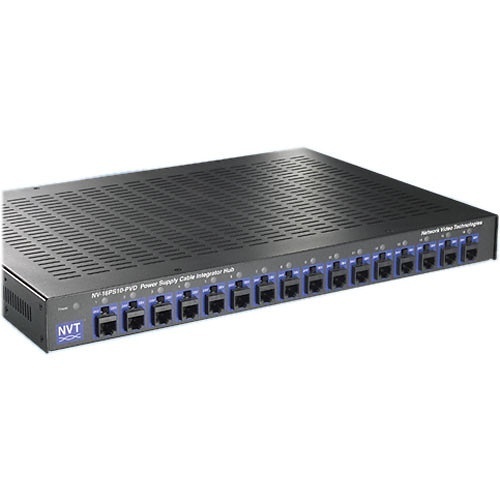

NVT Phybridge NV-16PS10-PVD Power Supply Cable Integrated Hub
NVT Phybridge NV-16PS10-PVD Power Supply Cable Integrated Hub
NVT Phybridge NV-16PS10-PVD Power Supply Cable Integrated Hub
NV-16PS10-PVD | NV-16PS10PVD
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
The NVT Phybridge model NV-16PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 16 cameras, all over UTP wire. Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-16PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts.
At the camera, Power, Video and Data connections are made using a PVD™ transceiver via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. Consolidated P/T/Z telemetry data, if required, passes through the NV-16PS10-PVD's data path, and is connected to the controller via another 4-pair RJ45 cable.
Principales caractéristiques
- Provides Class 2 SELV camera power and pass-through video and telemetry dataconnectivity for up to 16 cameras, each via a single RJ45 4-pair UTP cable
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24 or 28VAC with 1 Amp max per channel
- Automatic-reset fault protection; transient protection
- Individually floating outputs ensure total ground-loop immunity
- Frequency response DC to 10MHz (see Recommended Distance Chart)
- Diagnostic LEDs show load/no load, miswires, and overload conditions
- Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
- Power cameras via UTP over significant distances (see Power Distance Chart)
- 1 U high; 12" deep; wall, desk, or rack-mountable
Renseignements généraux
Spécifications
ADI Numéro du produit NV-16PS10PVD Code fabricant NV16PS10PVD Fabricant Phybridge, Inc Genre du connecteur Video Surveillance Marque NVT Phybridge Modèle de produit NV-16PS10-PVD Nom de produit NV-16PS10-PVD Power over Ethernet Midspan Type de produit PoE Injector Hub
Ports de sortie 16 x Ethernet
Facteur de forme Desktop Mount, Wall Mount Hauteur 1.7" Hauteur du rack 1U Largeur 19" Profondeur 12"
Fréquence maximum 60 Hz Puissance maximale en sortie 325W Tension de sortie maximum 1A Tension d'entrée 120V AC, 230V AC Tension d'Entrée Maximum 3 A Tension maximum de sortie 28 V AC
Type de montage Desktop Mount, Wall Mount
Garantie Limitée Lifetime
Certification environnementale RoHS, WEEE Certifications et normes - cUL
- CE
Compabilité Network Cameras Contenu de l'emballage - NV-16PS10-PVD Power over Ethernet Midspan
- Rack Mount "L" brackets (For front, rear, or wall installations)
- Rubber Feet (For desk applications)
- Power Cord (7ft)
Pays d'origine US Respectueux de l'environnement Yes
