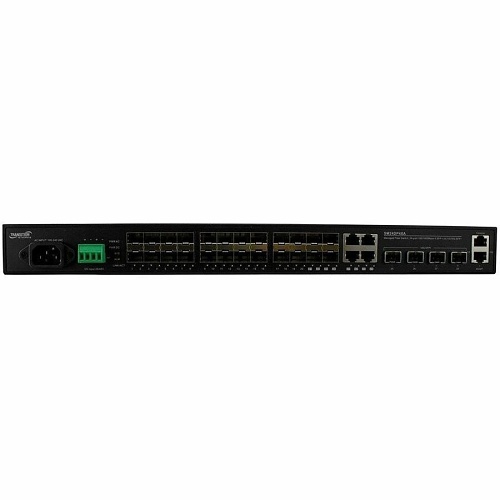

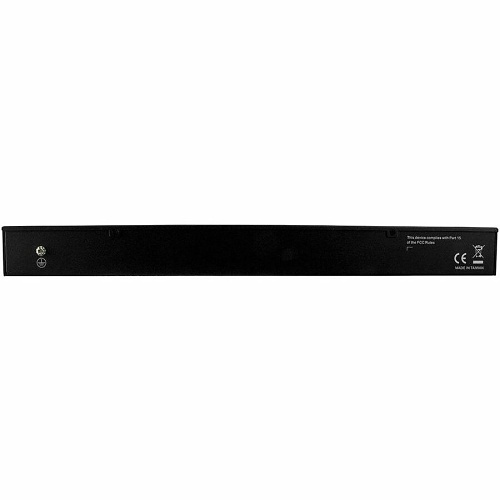

Lantronix SM24DP4XA-JP Managed Fiber Aggregation Switch, 20-Port 100/10
SM24DP4XA-JP|P6-24DP4XAJP
Lantronix SM24DP4XA-JP Managed Fiber Aggregation Switch, 20-Port 100/10
SM24DP4XA-JP|P6-24DP4XAJP
Lantronix
Lantronix SM24DP4XA-JP Managed Fiber Aggregation Switch, 20-Port 100/10
SM24DP4XA-JP | P6-24DP4XAJP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Managed Gigabit Ethernet Fiber Switch
(20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots
This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications.
Main Features
- Supports IPv4/IPv6 dual protocol stack
- Support Jumbo Frame up to 1518-4776 bytes
- Authentication - IEEE 802.1X, RADIUS, TACACS+
- Security - Supports SSH/SSL
- DHCP Relay, DHCP Option 82
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL, IEEE 802.1p, Ethernet type
- LLDP (Link Layer Discovery Protocol)
- DHCP Server
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
General Information
Name: Lantronix SM24DP4XA-JP Managed Fiber Aggregation Switch, 20-Port 100/10
Category:
UPC Code: 783384250321
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Numéro du produit P6-24DP4XAJP Brand Name Transition Networks Manufacturer Lantronix, Inc Manufacturer Part Number SM24DP4XAJP Product Model SM24DP4XA-JP Product Name SM24DP4XA Ethernet Switch Product Series SM24DP4XA Product Type Ethernet Switch
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 60W
TAA Compliant Yes
Expansion Slot Type SFP (mini-GBIC), SFP+ Number of SFP+ Slots 24 Number of Total Expansion Slots 28 Shared SFP Slot Yes
Modular Yes Total Number of Network Ports 4
Manageable Yes
Network Technology 100/1000Base-FX, 1000Base-TX, 1000Base-X, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 4 Networking Standards IEEE 1588v2, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ag, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 8.3" Height 1.7" Weight 2.87lb Width 17.4"
Input Voltage 120V AC, 230V AC, 24V DC, 48V DC Power Source Power Supply
Mount Type Rack Mount
Limited Warranty 5-Year
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SM24DP4XA Ethernet SwitchPower Cord Japan19" Rack Mount Bracket
