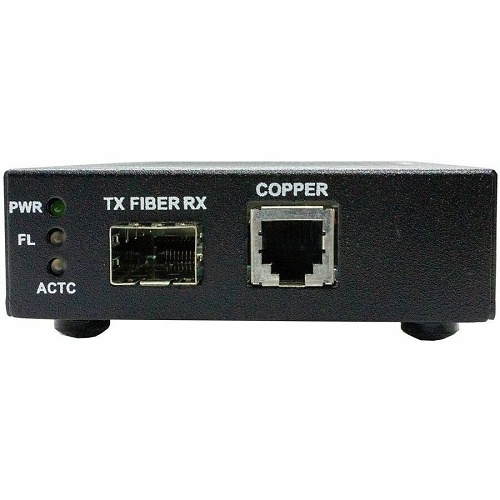

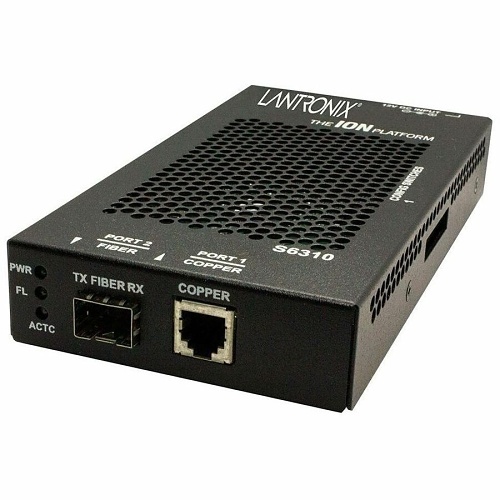

Lantronix S6310-3340-JP POTS Copper to Fiber Media Converter, ION SA, SFP, Japan Power Cord
Lantronix S6310-3340-JP POTS Copper to Fiber Media Converter, ION SA, SFP, Japan Power Cord
Lantronix S6310-3340-JP POTS Copper to Fiber Media Converter, ION SA, SFP, Japan Power Cord
S6310-3340 | P6-S631334JP
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
The S6310-3340 is a stand-alone media converter that provides an interface between a twisted pair RJ-11 port and a fiber port, allowing users to connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. The first unit connects to a telephone line or PBX and is configured to act as a telephone (FXO Mode) and has the ability to detect ringing voltages. The second unit is the reciprocal unit and is configured to have the ability to act as a Central Office and connects to a telephone device (FXS Mode).
Together, the modules allow legacy analog phone lines to be extended over fiber for both permanent installations as well as temporary job-site installations.
Principales caractéristiques
- Audio transmission of voice grade signals
- Supports ringing at distant end
- Supports Caller ID
- Configurable worldwide country formats
- Must be deployed in pairs: ION chassis card and stand-alone unit | ION chassis card and ION chassis card | Stand-alone unit and stand-alone unit
- Single product configurable to either FXO mode or FXS mode
- Automatic Ring Down supported when both converters are configured to FXS Mode
- SFP based product: Uses Gigabit Ethernet SFP Modules | Lantronix offers a wide variety of SFP modules to support multimode or singlemode fiber, as well as dual or single strand fiber installations
- Supports in-band management of remote stand-alone unit when linked to a POTS slide-in-card installed in a managed ION chassis
- Electrical interface is provided through an RJ-11 female connector
Renseignements généraux
Spécifications
ADI Numéro du produit P6-S631334JP Code fabricant S63103340JP Fabricant Lantronix, Inc Gamme ION Marque Lantronix Maximum Distance 3.11 Mile Modèle de produit S6310-3340 Nom de produit S6310-3340 Transceiver/Media Converter Nombre d'unités dans le pack 2 Série de produit S6310 Type de produit Transceiver/Media Converter
Consommation d'énergie 2W Fibre optique Multimode, Single-mode Type de média supporté Optical Fiber, Twisted Pair
Conforme aux normes TAA Yes
Nombre d'emplacements(s) SFP+ 1 Nombre total de slots d'extension 1 Type d'emplacement d'extension SFP TN-GLC-FE-100LX-RGD
Hauteur 1" Largeur 3.3" Poids 2lb Profondeur 6.5"
Alimentation AC, DC Tension d'entrée 12V DC
Garantie Limitée Lifetime
Certification environnementale RoHS, WEEE Contenu de l'emballage S6310-3340 Transceiver/Media ConverterPower Supply - Japan Respectueux de l'environnement Yes
