Panduit LCCX300-12-6 Compression Connector Lug, 2-Hole, Flex, 300kcmil, Copper
LCCX300-12-6|P9-CCX300126
Panduit LCCX300-12-6 Compression Connector Lug, 2-Hole, Flex, 300kcmil, Copper
LCCX300-12-6|P9-CCX300126

Panduit
Panduit LCCX300-12-6 Compression Connector Lug, 2-Hole, Flex, 300kcmil, Copper
LCCX300-12-6 | P9-CCX300126
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

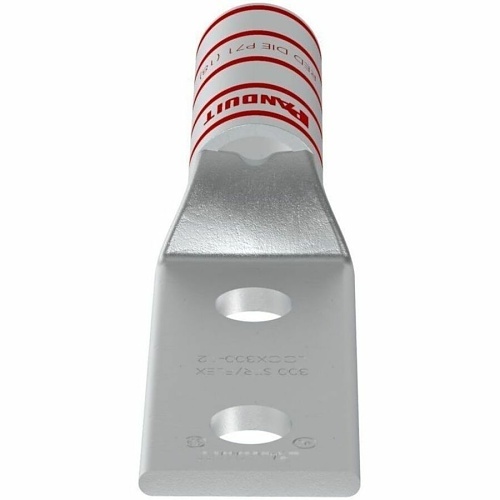

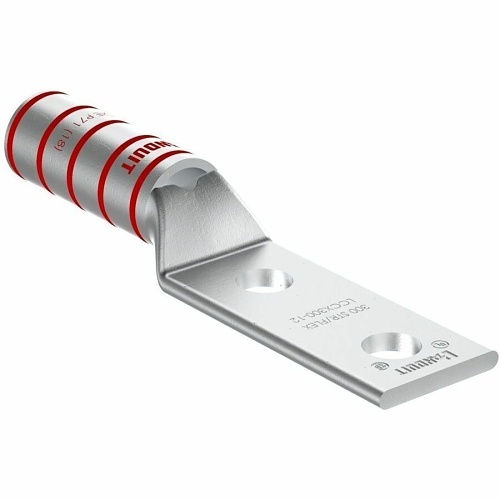

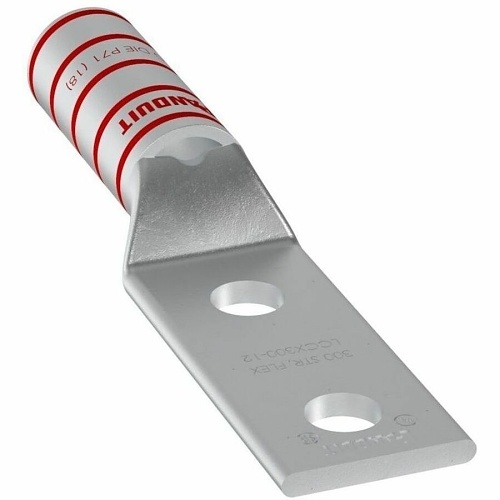

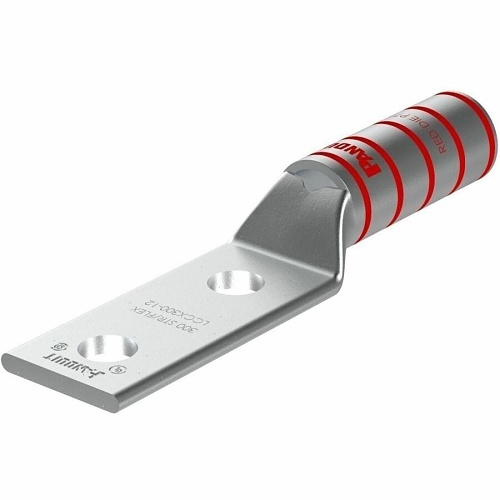

The LCCX300-12-6 Tin Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Principales caractéristiques
Renseignements généraux
Name: Panduit LCCX300-12-6 Compression Connector Lug, 2-Hole, Flex, 300kcmil, Copper
Category:
UPC Code:
Country of Origin: . Country of origin is subject to change.
Spécifications
ADI Numéro du produit P9-CCX300126 Code fabricant LCCX300-12-6 Marque Panduit Type de produit Grounding Lug
Latence CAS (Column Address Strobe) Copper, Tin Plated Copper
Couleur Vert
Diamètre 1" Longueur 5.9"
Garantie Limitée 1-Year
