Potter 1010117 Water Level Flow Switch
Potter 1010117 Water Level Flow Switch
Potter 1010117 Water Level Flow Switch
WLS | PL-1010117
Please sign in to view pricing and availability and to add to cart.
Product Overview

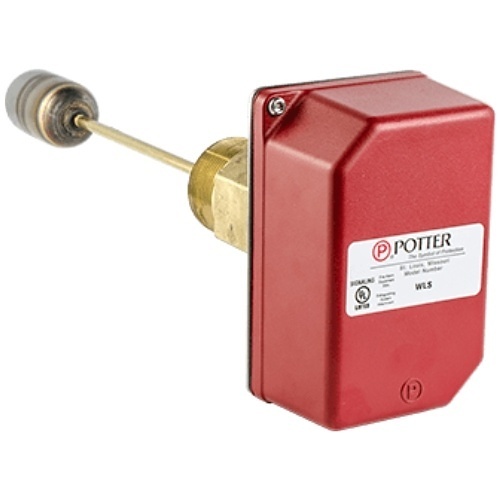

he Model WLS Water Level Switch is a float operated device for supervising water level in a sprinkler supply gravity or pressure tank.
The Model WLS has a bushing with 1 1/2" American Standard Pipe Threads for mounting in steel tanks. A 11/2" NPT x 2" NPT adapter bushing is available for mounting in existing 2" steel flanges. An optional bushing adapter with a buttress thread is available for mounting in wooden tanks.
The unit is capable of detecting the level of water before a 3" (7,6cm) rise and/or a 3" (7,6cm) fall in the water level in a pressure tank, as required for NFPA 72. The cover is held in place with two tamper resistant screws (provided), which require a special key for removal.
Main Features
- NEMA 4
- Suitable for use on pressure or gravity switches
- Mounts to wood or steel tanks
- Product includes a 5 year warranty
General Information
Specifications
ADI Numéro du produit PL-1010117 Brand Name Potter Manufacturer Potter Electric Signal, LLC Manufacturer Part Number 1010117 Product Model WLS Product Name WLS Water Level Switch Product Type Water Level Switch
Application/Usage Indoor, Outdoor Depth 2.6" Height 5.6" Width 3.5"
Limited Warranty 5 Year
