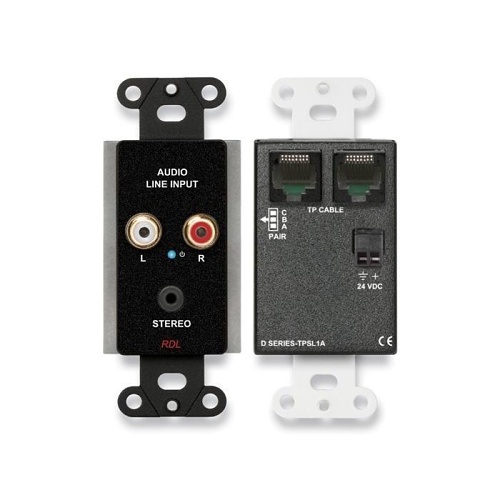

Image of RL-DBTPSL1A

ACTVE SNGL-PR SNDR-MINI-JACK &

DB-TPSL1A|RL-DBTPSL1A

ACTVE SNGL-PR SNDR-MINI-JACK &

DB-TPSL1A|RL-DBTPSL1A

Sign In for Dealer Pricing

Become an ADI Customer
Image of RL-DBTPSL1A

ACTVE SNGL-PR SNDR-MINI-JACK &

DB-TPSL1A | RL-DBTPSL1A

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The -TPSL1A modules are single pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources.

Main Features

  • Stereo Audio Input Combined to Mono Output
  • Input on Dual RCA Jacks or Mini-Jack
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
  • Studio-Quality Precision Active Balanced Circuitry

    • General Information

    Name: ACTVE SNGL-PR SNDR-MINI-JACK &
    Category:
    UPC Code: 813721014030
    Country of Origin: United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
