RDL DS-RN2ML Wall-Mounted Bi-Directional Mic / Line Dante Interface 2x2
DS-RN2ML|RL-DSRN2ML
RDL DS-RN2ML Wall-Mounted Bi-Directional Mic / Line Dante Interface 2x2
DS-RN2ML|RL-DSRN2ML
RDL DS-RN2ML Wall-Mounted Bi-Directional Mic / Line Dante Interface 2x2
DS-RN2ML | RL-DSRN2ML
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

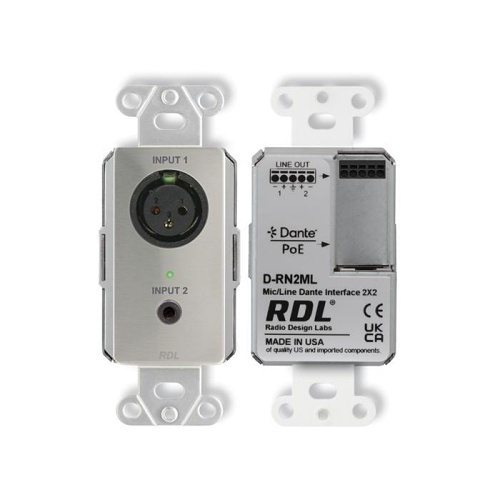

The D-RN2ML is a complete wall-mounted Dante or AES67 audio network interface. It features one XLR mic or line input on the front panel, one stereo Mini-jack line-level input summed to mono on the front panel and two balanced line outputs on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN2ML fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN2ML is PoE powered and is available in multiple finishes with optional customized graphics.
Principales caractéristiques
- Single-Gang Dante or AES67 Network Interface for Two Audio Inputs and Two Audio Outputs
- One Balanced XLR Mic-Level or Line-Level Input
- One Line-Level Summed-to-Mono Mini-jack Input
- Two Balanced Rear-Panel Outputs on Detachable Wiring Block
- Software-Selected XLR Input Gain, Mic - 35 dB, 42 dB or 59 dB, Line - Unity or 12 dB
- P48 Mic Phantom Selected by Software
- Software-Selected Mini-jack Input Gain - Unity, +5 dB / -5 dB
- Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
- Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
- Compatible with RDL Network Remote Controls
Renseignements généraux
Name: RDL DS-RN2ML Wall-Mounted Bi-Directional Mic / Line Dante Interface 2x2
Category:
UPC Code: 813721016911
Country of Origin: United States. Country of origin is subject to change.
Spécifications
ADI Numéro du produit RL-DSRN2ML Code fabricant DS-RN2ML
