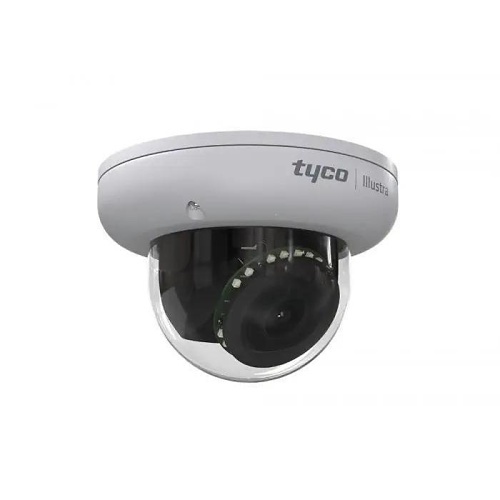

American Dynamics IPS02-D17-OI04 Illustra Pro Gen4 2MP Indoor / Outdoor MiniDome Camera, 7-22mm Lens, IP67, IK10
IPS02-D17-OI04|RO-IP2D17OI4
American Dynamics IPS02-D17-OI04 Illustra Pro Gen4 2MP Indoor / Outdoor MiniDome Camera, 7-22mm Lens, IP67, IK10
IPS02-D17-OI04|RO-IP2D17OI4
American Dynamics IPS02-D17-OI04 Illustra Pro Gen4 2MP Indoor / Outdoor MiniDome Camera, 7-22mm Lens, IP67, IK10
IPS02-D17-OI04 | RO-IP2D17OI4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classification, events can be narrowed to classes such as person, car, bus, motorcycle and more. Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
Main Features
General Information
Name:American Dynamics IPS02-D17-OI04 Illustra Pro Gen4 2MP Indoor / Outdoor MiniDome Camera, 7-22mm Lens, IP67, IK10
Category:
UPC Code:840456175224
Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Numéro du produit RO-IP2D17OI4 Brand Name American Dynamics Manufacturer Part Number IPS02-D17-OI04
Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.7 Maximum Frame Rate 60 fps Minimum Focal Length 7 mm Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, IntelliZip, MJPEG
Night Vision Distance 164' Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 149°F Minimum Operating Temperature -58°F Operating Humidity 0-90%
Longest Shutter Speed 1/4 Second Minimum Illumination 0.02|0.0002|0 lux Shortest Shutter Speed 1/10000 Second
HDMI Yes
Focal Length 7-22 mm Lens Included Yes Maximum Focal Length 22 mm Minimum Aperture f/2.8
Input Voltage 24V AC
Diameter 5.4"
Storage Type Memory Card
Environmental Certification AS/NZS CISPR 32 Class A, CSA 22.2 No. 60950, EN50130-3, EN55024, EN55032 Class A, EN60950-1, FCC part 15 class A, ICES-003/NMB-003 Class A, IEC 60950-1, RoHS, UL60950-1, WEEE Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
