Securitron AQD2-2R Power Supply

AQD2-2R | SN-AQD22R

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

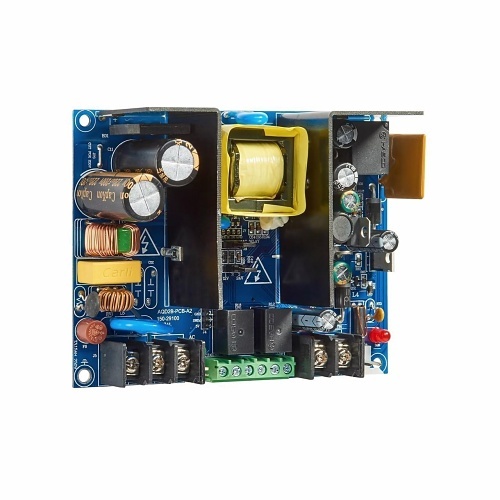

The Securitron AQD2 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 2A at 12V DC or 24V DC continuous, with up to 16 independently controlled power limited outputs.

Principales caractéristiques

  • All combinations of AQ power supplies and distribution boards are UL listed
  • Dual voltage 12 or 24 VDC field selectable continuous output
  • Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
  • Tolerates brownout or overvoltage input ± 15% of nominal voltage
  • Thermal shutdown protection with auto restart
  • Circuit breaker protects against overcurrent and reverse battery faults
  • Dedicated battery charging circuit prevents overvoltage on locking devices
  • Low battery cutoff at 9V at 12V and 18V at 24V
  • Available with a single relay fire trigger or individually triggered relayed outputs

    • Renseignements généraux

    Name: Securitron AQD2-2R Power Supply
    Category:
    UPC Code:
    Country of Origin: . Country of origin is subject to change.
