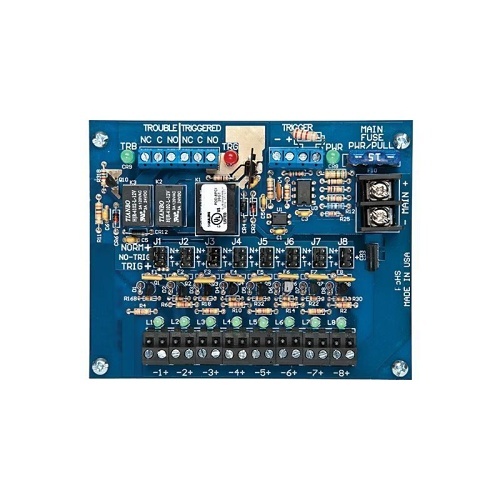

Securitron PDB-8C1R1 Power Distribution Board, 8 Output with Fire Trigger Relay, 1A PTC

PDB-8C1R1|SN-PDB8C1R1
Securitron by ASSA ABLOY

Securitron PDB-8C1R1 Power Distribution Board, 8 Output with Fire Trigger Relay, 1A PTC

PDB-8C1R1|SN-PDB8C1R1

Sign In for Dealer Pricing

Become an ADI Customer
Image of SN-PDB8C1R1
Securitron by ASSA ABLOY

Securitron PDB-8C1R1 Power Distribution Board, 8 Output with Fire Trigger Relay, 1A PTC

PDB-8C1R1 | SN-PDB8C1R1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The PDB-8C1R /8F1R power distribution control interface converts a main non-power limited DC power source to 8 power-limited outputs that can be controlled by a Fire Alarm Control Panel. Each output can be selectively set to Turn ON or to Turn OFF when triggered by the panel. The system can interface to the PDB-8C1R /8F1R with either of two or both supervised trigger inputs.

Main Features

  • 8 Power Limited Outputs with Auto-Resetting
  • Circuit Breakers for model 8C1R
  • Each Output is Individually Selectable to Turn On, Turn Off, or always ON when Triggered
  • Outputs can be triggered with: Voltage or Reverse polarity (optically isolated) N/O or N/C switch with supervised EOL
  • Form C Contacts (TRIGGERED) and Red LED (TRG) Indicate Trigger Status
  • Form C Contacts (TROUBLE) and Green LED (TRB) Indicate: One of the output circuit breakers is tripped Main Fuse Blown or no power on input
  • Operates with 12-28VDC; Nominal 12-24VDC
  • Each Output pair has a Removable Terminal Block and Green Status LED
  • Main Power has Green Status LED
  • UL Listed Sub Assembly for Access Control and Burglar Alarm Systems
