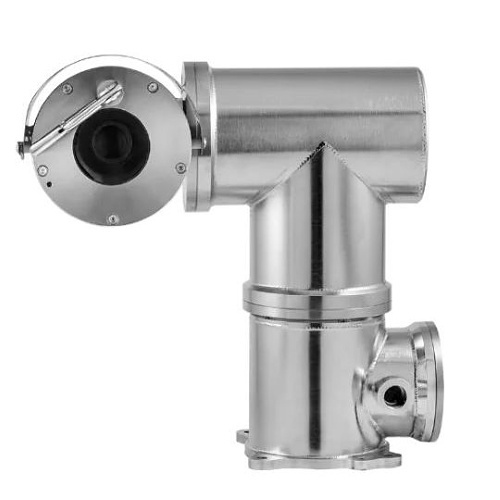

Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

TNU-X6320A1WT1-Z|SQ-6320A11Z

Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

TNU-X6320A1WT1-Z|SQ-6320A11Z

Sign In for Dealer Pricing

Become an ADI Customer

Hanwha Vision

Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

TNU-X6320A1WT1-Z | SQ-6320A11Z

Please sign in to view pricing and availability and to add to cart.

Overview

Specifications

Documents

Product Overview

The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.

Main Features

2MP (1920x1080) Resolution

4.44-142.6 mm (32x) Optical zoom, 16x digital zoom

H.265, H.264, MJPEG Triple codec, WiseStream II

DIS with built-in Gyro sensor

Day and Night (ICR), WDR (120dB)

Video Analytics, dual SDXC memory slots

Electro-polished 316L stainless steel on all welded assemblies

Camera station window in toughened glass

Integrated Wiper

General Information

Name: Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

Category:

UPC Code:

Country of Origin: UK. Country of origin is subject to change.

Specifications

ADI Numéro du produit

SQ-6320A11Z

Brand Name

Hanwha Vision

Manufacturer

Hanwha Vision

Manufacturer Part Number

TNU-X6320A1WT1-Z

Product Model

TNU-X6320A1WT1-Z

Product Name

Explosion Proof PTZ Camera

Product Type

Network Camera

Weight

73lb

Effective Camera Resolution

2MP

Field of View

62.8°-2.23°

Lens Mount Type

Board Mount

Lens Type

DC Auto Iris

Maximum Frame Rate

60fps

Minimum Focal Length

4.44mm

Night Vision

Yes

Optical Zoom

32x

Video Formats

H.264, H.265, MJPEG, MPEG-4

Image Sensor Type

CMOS

Wide Dynamic Range

Yes

Ingress Protection Rating

IP66, IP67

Maximum Video Resolution

1920 x 1080

Maximum Operating Temperature

140°F

Minimum Operating Temperature

-40°F

Longest Shutter Speed

1/12000 Second

Minimum Illumination

0.0005 lux

Shortest Shutter Speed

1 Second

Focal Length

4.44-142.6 mm

Maximum Focal Length

142.6 mm

Minimum Aperture

f/4.4

Color

White

Durability

Explosion Proof

Form Factor

PTZ

Input Voltage

24V AC

Mount Type

Board-in Mount

Recording Formats

Full HD

Limited Warranty

3-Year

Country of Origin

Features

2D Noise Reduction, 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, White Balance, Wide Dynamic Range, Wiper
