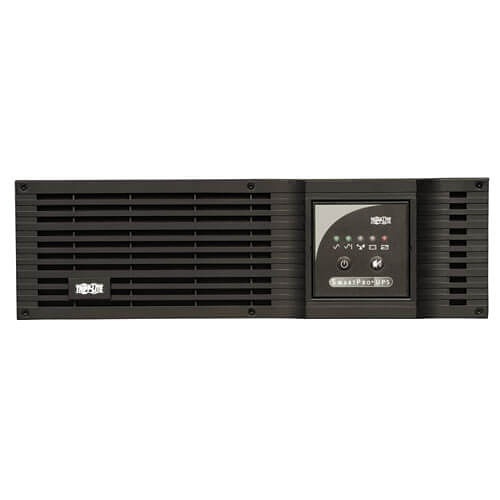

Image of TC-5000TEL3U
Eaton Tripp Lite

Eaton Tripp Lite SMART5000TEL3U SmartPro Line-Interactive Sine Wave UPS, 208V, 3U RS

SMART5000TEL3U|TC-5000TEL3U
Eaton Tripp Lite

Eaton Tripp Lite SMART5000TEL3U SmartPro Line-Interactive Sine Wave UPS, 208V, 3U RS

SMART5000TEL3U|TC-5000TEL3U

Sign In for Dealer Pricing

Become an ADI Customer

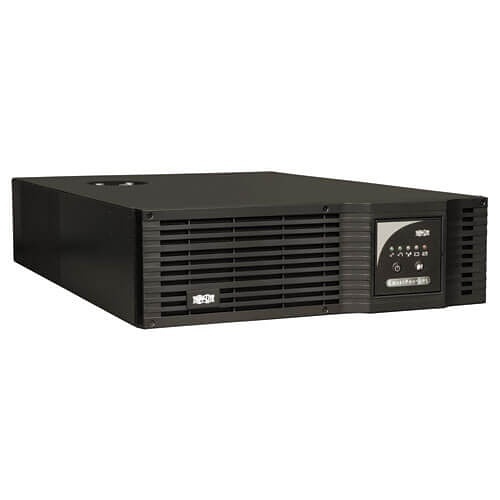

Image of TC-5000TEL3U
Eaton Tripp Lite

Eaton Tripp Lite SMART5000TEL3U SmartPro Line-Interactive Sine Wave UPS, 208V, 3U RS

SMART5000TEL3U | TC-5000TEL3U

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SMART5000TEL3U intelligent line-interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rack-mount housing. Completely self-contained UPS system occupies only 3U in a standard 19" rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4-post rack enclosures. Large-capacity 5000VA/3750W UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets supports up to 600VA monitors and other low-voltage accessories. Includes slot for internal Network Management Card option. Includes USB and two DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high-current 20A and 30A 208V connectors and up to two 120V devices (max 600VA at 120V).

Main Features

  • Intelligent line-interactive UPS for server protection
  • Compact 3U rackmount design for space efficiency
  • Supports 5000 VA/3750 watt capacity
  • Regulates output to 208V with raw AC input
  • Includes USB and DB9 ports for remote monitoring
  • Supports high current 20 and 30 amp connectors
  • Accommodates up to two 120V devices (max 600VA)
  • Slot for internal Network Management Card option
  • USB and Serial Ports for unattended shutdown
  • Compatible with UPS management card options

    • General Information

    Name: Eaton Tripp Lite SMART5000TEL3U SmartPro Line-Interactive Sine Wave UPS, 208V, 3U RS
    Category:
    UPC Code: 037332116116
    Country of Origin: . Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
