Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

B042-008|TC-B042008
Shop all Eaton Tripp Lite

Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

B042-008|TC-B042008

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B042008
Eaton Tripp Lite

Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

B042-008 | TC-B042008

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The NetController 8-Port 1U rack-mount KVM Switch is an affordable, highly flexible enterprise-class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to eight directly connected computers, or expand the number of connected computers to up to 248 by daisy-chaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), push buttons or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048x1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

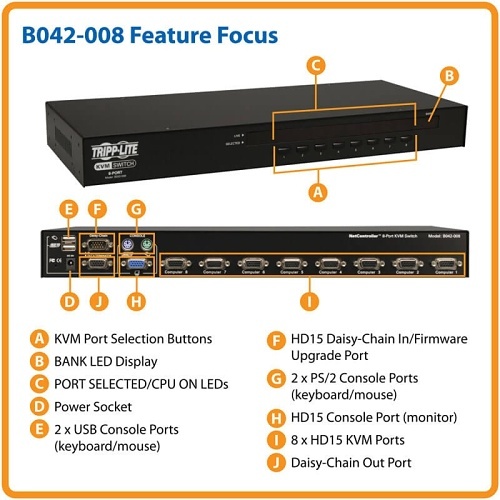

Main Features

  • 8-Port 1U Rack-Mount KVM Switch
  • Control 8 computers with one VGA monitor

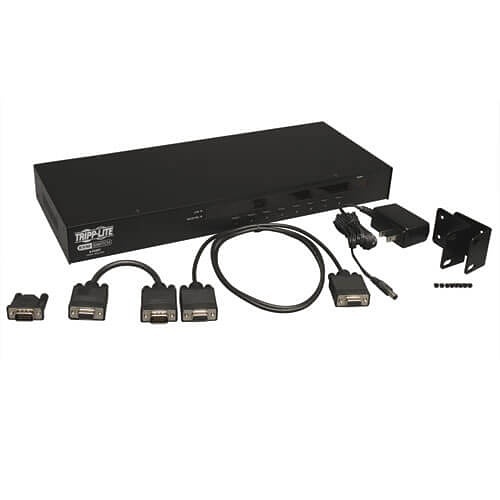

  • USB/PS2 combo Cable kits included
  • Daisy-chain up to 248 computers
  • 19" Rackmount size with hardware
  • On-Screen Display for easy operation
  • Supports video Resolution up to 2048x1536
  • Password protection and auto-logout
  • Firmware upgradeable
  • Hot-swappable USB connections

    • General Information

    Name: Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display
    Category:
    UPC Code: 037332141392
    Country of Origin: China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    User Manual
    Manufacturer Brochure
