Image of TC-B110SPPO1

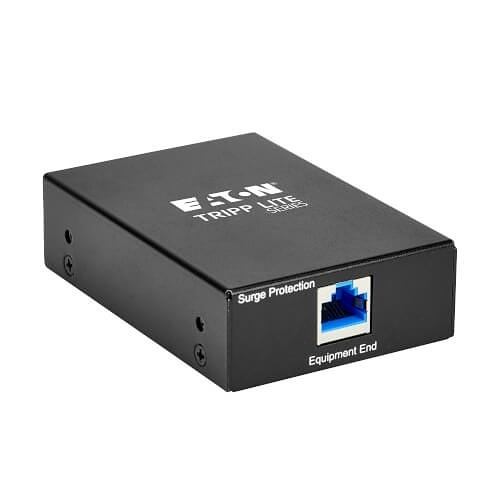

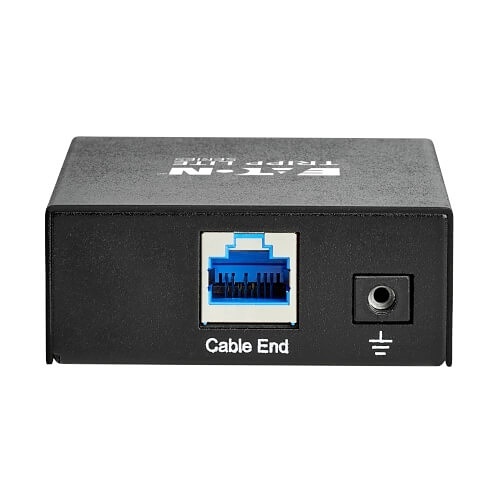

Eaton Tripp Lite B110-SP-POE-1 In-Line PoE Surge Protector - 1 Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA

B110-SP-POE-1|TC-B110SPPO1

Eaton Tripp Lite B110-SP-POE-1 In-Line PoE Surge Protector - 1 Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA

B110-SP-POE-1|TC-B110SPPO1

Se connecter prix revendeur

Devenir client ADI
Image of TC-B110SPPO1

Eaton Tripp Lite B110-SP-POE-1 In-Line PoE Surge Protector - 1 Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA

B110-SP-POE-1 | TC-B110SPPO1

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-POE-1 protects connected equipment from damage caused by power surges and electrostatic discharge (ESD). Just connect it between your source and network equipment using CAT5e/6 cables. Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Both mid-span and endspan PoE are supported. The B110-SP-POE-1 meets the following IEC/EN regulations: IEC 61000-4-2 / IEC 61000-4-5 (ESD) 30kV (Air, Contact) and EN 61000-4-5 5kA (8/20s) / 4kV (10/700s). This PoE in-line surge protector meets 802.3af and 802.3at IEEE standards, while supporting data transmission speeds up to 1 Gbps. No software or external power supply is required. The compact housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-POE-1 and the equipment it is protecting is no more than 300' (91m).

Principales caractéristiques

  • 1 Gbps data transmission speed
  • IEC and TAA Compliant
  • Protects against Power surges and ESD
  • Supports mid-span and end-span PoE
  • Compact and easy to install
  • No software or external Power needed

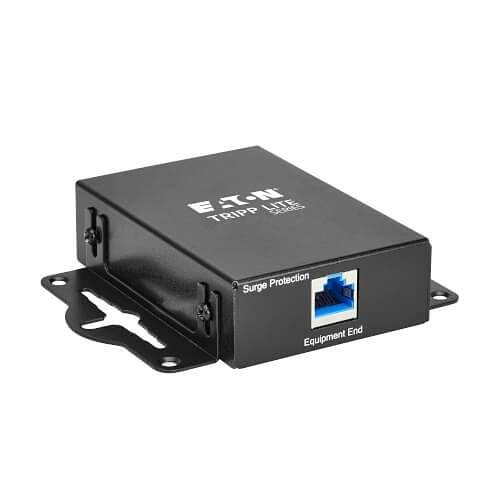

  • Includes mounting hardware
  • Suitable for home and corporate use
  • Meets IEEE 802.3af and 802.3at standards

    • Renseignements généraux

    Name: Eaton Tripp Lite B110-SP-POE-1 In-Line PoE Surge Protector - 1 Gbps, Cat5e/6, Metal Case, IEC Compliant, TAA
    Category:
    UPC Code:
    Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
