The B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter works with B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals, one local and four remote. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see P568-Series) to connect to the source and the local monitor and CAT5e/6 cable to transmit to the remote monitors (for best results, use 24AWG solid-wire CAT5e/6 cable, such as N202-Series). When used with B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200' (61m), a 1080p signal (60 Hz) up to 150' (45.7m) and a 3D signal up to 125' (38.1m). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100' (30.5m) and a 1080p (60 Hz) signal up to 50' (15.2m). By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors, one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.
Principales caractéristiques
Renseignements généraux
Name: Eaton Tripp Lite B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter, Box-Style Transmitter for Video and Audio, 1080P at 60 Hz, up to 200', TAA
Category:
UPC Code: 037332157515
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Spécifications
ADI Numéro du produit TC-B126004 Code fabricant B126-004 Fabricant Tripp Lite by Eaton Marque Eaton Tripp Lite Modèle de produit B126-004 Nom de produit Extendeur vidéo B126-004 Type de produit Video Extender Transmitter
Distance maximale de fonctionnement 200' Nombre de Dispositfs d'Entrée Supportés 1 Nombre de Périphériques de Sortie Supportés 5 Type de câble Category 6 Type de média supporté Twisted Pair
Technologie de connecttivité Wired
Conforme aux normes TAA Yes
Résolution maximale vidéo 1920 x 1080

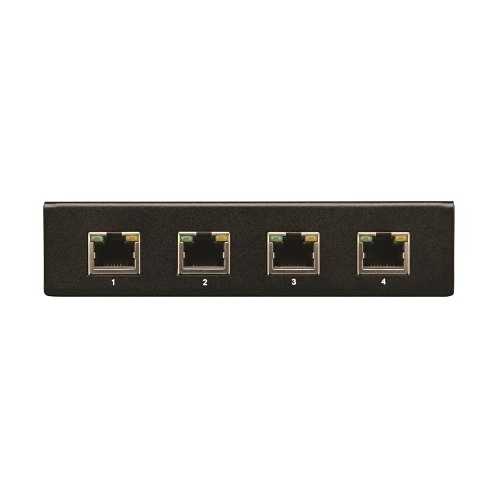

Nombre de ports RJ-45 4 Nombre de sorties HDMI 1 Nombre d'entrées HDMI 1 Réseau (RJ-45) Yes
Couleur Bleu Facteur de forme Rack Mount Hauteur 1.13" Largeur 5" Profondeur 4"
Type de montage Rack Mount
Garantie Limitée 1-Year

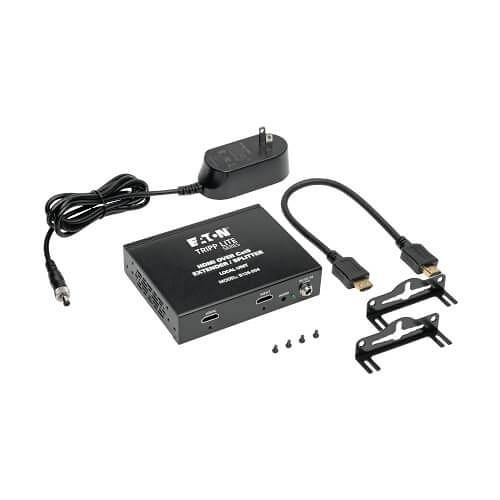

Contenu de l'emballage - B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter
- HDMI daisy-chain cable with latching connectors, 12 in.
- External Power Supply (Input: 100-240V, 50/60 Hz, 1.0A; Output: 5V, 3A, 5-ft. (1.52 m)
- Mounting hardware
Pays d'origine TW Respectueux de l'environnement Yes
