Eaton Tripp Lite B126-1A1-U HDMI Over CAT5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, up to 125' (38 m), 1080P, TAA
B126-1A1-U|TC-B1261A1U
Eaton Tripp Lite B126-1A1-U HDMI Over CAT5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, up to 125' (38 m), 1080P, TAA
B126-1A1-U|TC-B1261A1U
Eaton Tripp Lite
Eaton Tripp Lite B126-1A1-U HDMI Over CAT5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, up to 125' (38 m), 1080P, TAA
B126-1A1-U | TC-B1261A1U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

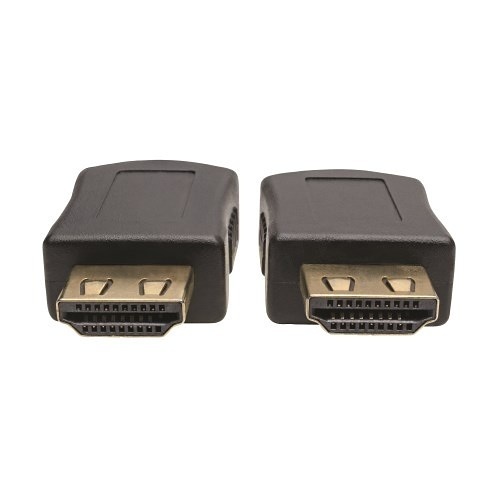

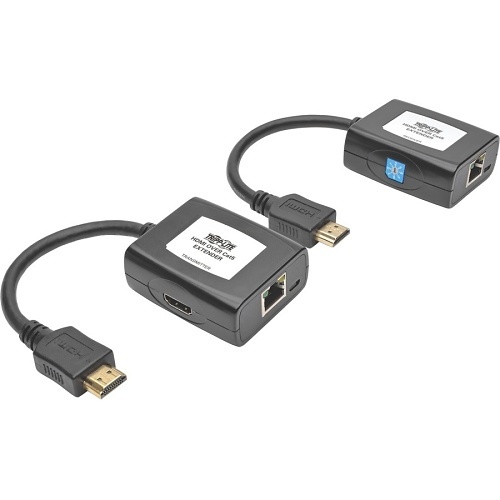

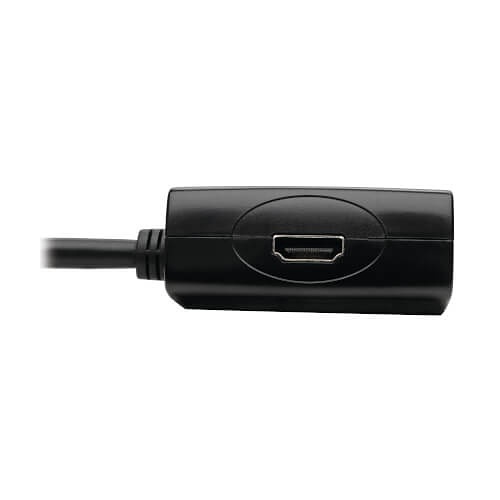

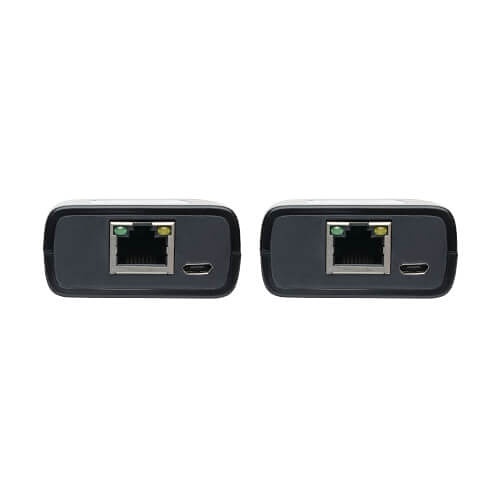

The B126-1A1-U HDMI over CAT5/CAT6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to an HDMI projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. A latching HDMI connector on the built-in cable provides a more secure connectionThe transmitter's built-in HDMI cable connects to the audio/video source, and the receiver's built-in HDMI cable connects to the display. CAT5e/6 cable connects the two units (for best results, use 24AWG solid-wire CAT5e/6 cable, such as the N202-Series). Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the source device, display or USB wall charger. You can also connect an optional HDMI monitor to the transmitter's local port with a user-supplied HDMI cable, such as the P568-Series. The B126-1A1-U can extend a 1080p (at 60 Hz) signal up to 125' (38.1m) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at each remote display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.
Main Features
General Information
Name: Eaton Tripp Lite B126-1A1-U HDMI Over CAT5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, up to 125' (38 m), 1080P, TAA
Category:
UPC Code: 037332190260
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Numéro du produit TC-B1261A1U Brand Name Eaton Tripp Lite Manufacturer Tripp Lite by Eaton Manufacturer Part Number B126-1A1-U Product Model B126-1A1-U Product Name HDMI over Cat5/Cat6 Active Extender Kit, 1080p @ 60 Hz, USB Powered Product Type Video Extender Transmitter/Receiver
Cable Type Category 6 Maximum Operating Distance 125' Media Type Supported Twisted Pair Number of Input Devices Supported 1 Number of Output Devices Supported 1
Connectivity Technology Wired
TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Network (RJ-45) Yes Number of HDMI Inputs 1 Number of HDMI Outputs 1 Number of Network (RJ-45) Ports 2 Number of USB Ports 2
Color Black
Graphics Modes Full HD
Limited Warranty 1-Year
Country of Origin TW Environmentally Friendly Yes Package Contents - Transmitter Unit
- Receiver Unit
- 2 x USB Micro-B to USB-A Cables, 3 ft.
- Screwdriver for Adjusting Equalization
- Owner's Manual
