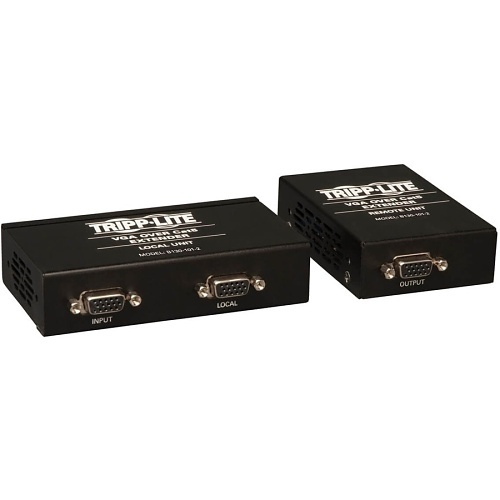

Eaton Tripp Lite B130-101-2 VGA Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, up to 1000' (305 m), TAA
Eaton Tripp Lite B130-101-2 VGA Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, up to 1000' (305 m), TAA
Eaton Tripp Lite B130-101-2 VGA Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video, up to 1000' (305 m), TAA
B130-101-2 | TC-B1301012
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
Principales caractéristiques
Renseignements généraux
Spécifications
ADI Numéro du produit TC-B1301012 Code fabricant B130-101-2 Fabricant Tripp Lite by Eaton Marque Eaton Tripp Lite Modèle de produit B130-101-2 Nom de produit VGA over Cat5 Extender Kit ( Transmitter + Receiver ) Type de produit Extenseur vidéo émetteur/récepteur
Distance maximale de fonctionnement 1000' Nombre de Dispositfs d'Entrée Supportés 1 Nombre de Périphériques de Sortie Supportés 2 Type de câble Category 6 Type de média supporté Twisted Pair
Technologie de connecttivité Wired
Conforme aux normes TAA Yes
Résolution maximale vidéo 1920 x 1440
Entrée VGA Yes Nombre de ports RJ-45 2 Nombre de sorties VGA 2 Réseau (RJ-45) Yes Sortie VGA Yes
Couleur Bleu Facteur de forme Pole Mount, Rack Mount, Wall Mount
Type de montage Pole Mount, Rack Mount, Wall Mount
Garantie Limitée 1-Year

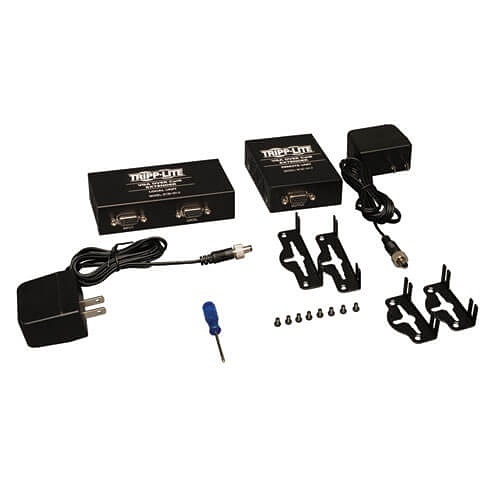

Certification environnementale RoHS Contenu de l'emballage - Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
- Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
- Mini-Screwdriver for EQ/Gain adjustment
- (x2) Mounting Hardware Kits
- (x2) External Power Supplies with NEMA 1-15P Plug(Input: 10, 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A), Owner's Manual
Pays d'origine TW Respectueux de l'environnement Yes
