Image of TC-B130101U
Eaton Tripp Lite

Eaton Tripp Lite B130-101-U VGA Over CAT5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, up to 500' (152 m), TAA

B130-101-U|TC-B130101U
Eaton Tripp Lite

Eaton Tripp Lite B130-101-U VGA Over CAT5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, up to 500' (152 m), TAA

B130-101-U|TC-B130101U

Se connecter prix revendeur

Devenir client ADI
Image of TC-B130101U
Eaton Tripp Lite

Eaton Tripp Lite B130-101-U VGA Over CAT5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, up to 500' (152 m), TAA

B130-101-U | TC-B130101U

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

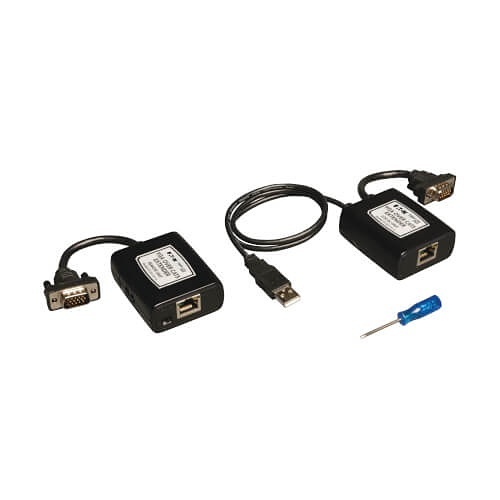

This USB-powered VGA over CAT5 Extender Kit allows you to extend a 1920x1440 (60 Hz) signal up to 350' (106.7m) or a 1024x768 (60 Hz) signal up to 500' (152.4m) when using 24AWG Solid Wire CAT5e/6 cable, such as N022-01K-GY (CAT5) and N222-01K-GY (CAT6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer, no external AC adapters required. Receiver unit includes gain adjustment for brightness/darkness control and equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment, no additional VGA cables required. Kit includes a transmitter with VGA and USB (power) pigtails and a receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls.

Principales caractéristiques

  • Extends 1920x1440 signal up to 350 ft
  • Supports 1024x768 signal up to 500 ft
  • USB-powered, no external AC needed
  • Built-in VGA dongles, no extra cables

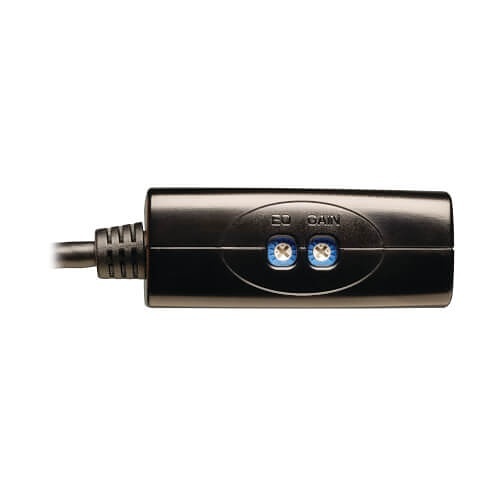

  • Includes Equalization and Gain controls
  • Uses CAT5e or Cat6 solid conductor cable
  • TAA Compliant for GSA Schedule purchases

    • Renseignements généraux

    Name: Eaton Tripp Lite B130-101-U VGA Over CAT5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, up to 500' (152 m), TAA
    Category:
    UPC Code: 037332166593
    Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
