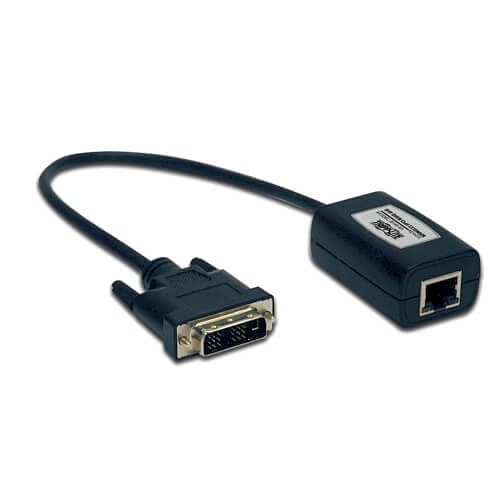

Eaton Tripp Lite B140-1P0 DVI over CAT5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100' (30 m), TAA

B140-1P0 | TC-B1401P0

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units. It transmits a DVI-D Single-Link signal up to 100' (30.5m) away using a single CAT5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24AWG Solid Wire CAT5e/6 cable (N202-Series). The B140-1P0 is compatible with all operating systems and is plug and play with no external power, software or drivers required. Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single CAT5e/6 cable. A 1920x1080 at 60 Hz signal can be extended up to 50' (15.2m) from the source or a 1024x768 at 60 Hz signal up to 100' (30.5m).

Main Features

  • Extends DVI-D signal up to 100 ft using Cat5e/6 cable
  • Compatible with all operating systems
  • Plug and play, no external power needed
  • Supports resolutions up to 1920 x 1080 @ 60Hz
  • Compliant with TAA for GSA Schedule purchases
  • Simple installation with no software required
  • Works with all operating systems
  • Plug and play; no Power or drivers needed
  • TAA Compliant for GSA Schedule purchases

    • General Information

    Name: Eaton Tripp Lite B140-1P0 DVI over CAT5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100' (30 m), TAA
    Category:
    UPC Code: 037332156655
    Country of Origin: . Country of origin is subject to change.
