Eaton Tripp Lite DWM3770X Swivel, Tilt Wall Mount for 37" to 70" TVs and Monitors
DWM3770X|TC-DWM3770X
Eaton Tripp Lite DWM3770X Swivel, Tilt Wall Mount for 37" to 70" TVs and Monitors
DWM3770X|TC-DWM3770X
Eaton Tripp Lite
Eaton Tripp Lite DWM3770X Swivel, Tilt Wall Mount for 37" to 70" TVs and Monitors
DWM3770X | TC-DWM3770X
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

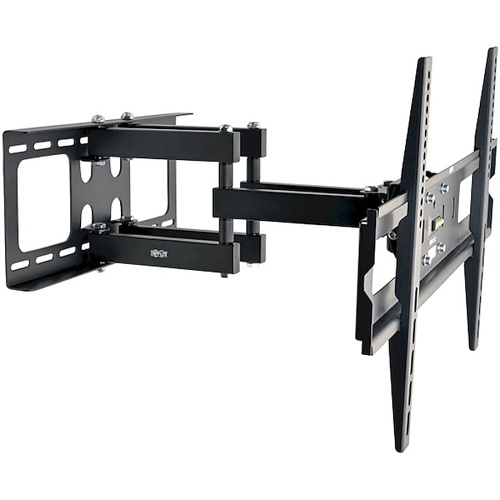

The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70". The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100x100mm, 100x200mm, 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x300mm and 600x400mm.
Main Features
General Information
Name: Eaton Tripp Lite DWM3770X Swivel, Tilt Wall Mount for 37" to 70" TVs and Monitors
Category:
UPC Code: 037332187437
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Numéro du produit TC-DWM3770X Brand Name Eaton Tripp Lite Manufacturer Tripp Lite by Eaton Manufacturer Part Number DWM3770X Packaged Quantity 1 Product Model DWM3770X Product Name Full-Motion Wall Mount for 37" to 70" Flat-Screen Displays Product Type Wall Mount
Device Supported Flat Panel Display Material Metal Maximum Load Capacity 165 lb
Color Black Depth 20.6" Form Factor Wall Mount Height 17.3" VESA Mount Compatible Yes VESA Mount Standard 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 Width 23.6"
Maximum Screen Size Supported 70" Minimum Screen Size Supported 37" Number of Displays Supported 1
Limited Warranty 5-Year
Compatibility Monitor Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Adjustable Angle, Adjustable Arm, Articulating, Leveling System, Pivot, Swivel, Tilt
