Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA
PDUMV20NETLX|TC-MV20NET
Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA
PDUMV20NETLX|TC-MV20NET
Eaton Tripp Lite
Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA
PDUMV20NETLX | TC-MV20NET
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

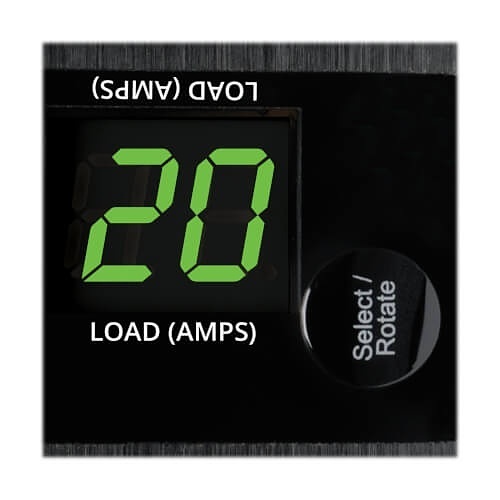

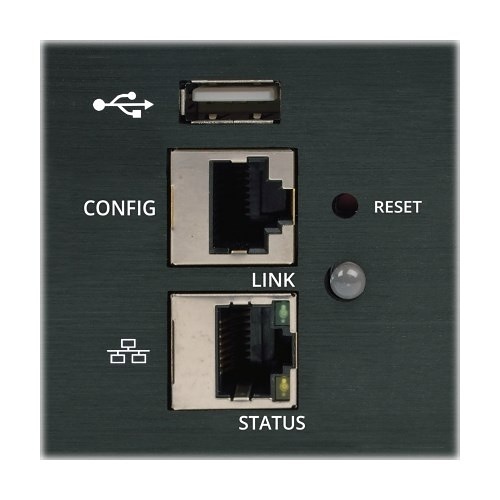

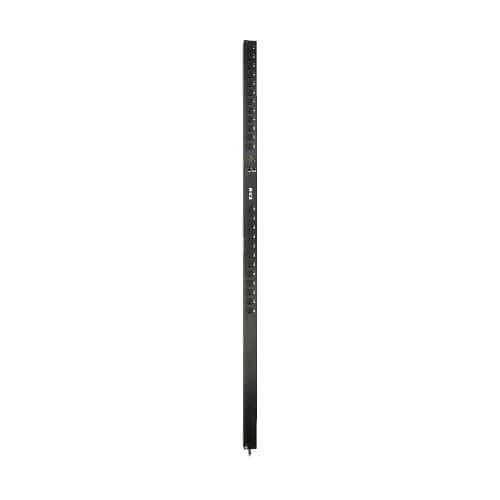

The PDUMV20NETLX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10' (3.05m) cord with NEMA L5-20P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19" racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Principales caractéristiques
Renseignements généraux
Name: Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA
Category:
UPC Code: 037332205315
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Spécifications
ADI Numéro du produit TC-MV20NET Code fabricant PDUMV20NETLX Fabricant Tripp Lite by Eaton Marque Eaton Tripp Lite Modèle de produit PDUMV20NETLX Nom de produit Unité de distribution d'alimentation PDUMV20NETLX Nombre d'unités dans le pack 1 Type de produit Commutateur KVM
Détail du réceptacle 24 x NEMA 5-15/20R Phase Single Phase Tension de sortie 120V AC Type de PDU Switched Type de Prise/Module Enfichable NEMA 5-15/20R
Conforme aux normes TAA Yes
Réseau (RJ-45) Yes
Commutation à distance des prises Yes
Hauteur 70" Hauteur du rack 0U Largeur 2.2" Orientation de montage Vertical Poids 8.50lb Profondeur 2.7"
Courant d'entrée 20A Tension d'entrée 120V AC Type de connecteur/prise NEMA 5-20P, NEMA L5-20P
Longueur 10' Type de montage Rack Mount
Garantie Limitée 2-Year
Caractéristiques CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 Certification environnementale RoHS Contenu de l'emballage - PDUMV20NETLX 1.9kW Single-Phase Switched PDU
- Built-in LX Platform interface
- NEMA L5-20R to 5-15/20P plug adapter
- Configuration cable
- (24) Cable ties
- (2) Cord retention brackets
- Rack-mounting hardware, 2 x Cord Retention Brackets, Owner's Manual, PDUMVROTATEBRKT Mounting Bracket Accessory, Rack-Mounting Hardware
Pays d'origine TW Respectueux de l'environnement Yes
