Eaton Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and C19 Outlets, L6-30P Input, 0U, TAA
PDUMV30HVNETLX|TC-PDUMV3HV
Eaton Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and C19 Outlets, L6-30P Input, 0U, TAA
PDUMV30HVNETLX|TC-PDUMV3HV
Eaton Tripp Lite
Eaton Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and C19 Outlets, L6-30P Input, 0U, TAA
PDUMV30HVNETLX | TC-PDUMV3HV
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

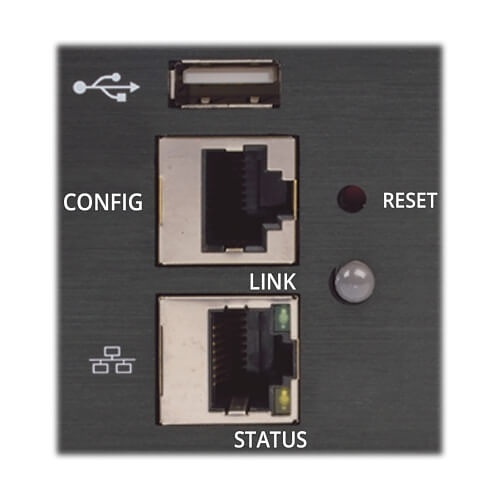

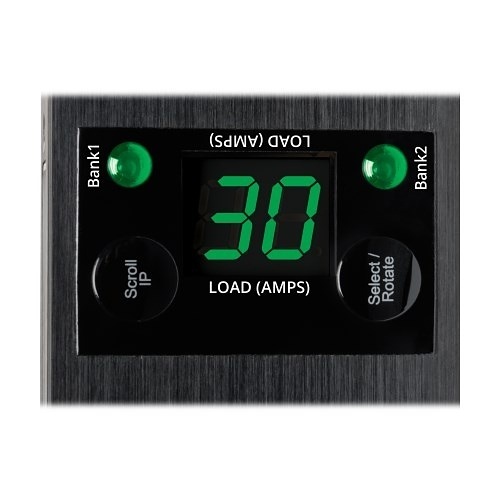

The PDUMV30HVNETLX 5/5.5kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. LEDs indicate each outlet's on/off power status. A 10' (3.05m) cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19" racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Principales caractéristiques
Renseignements généraux
Name: Eaton Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and C19 Outlets, L6-30P Input, 0U, TAA
Category:
UPC Code: 037332202550
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Spécifications
ADI Numéro du produit TC-PDUMV3HV Code fabricant PDUMV30HVNETLX Fabricant Tripp Lite by Eaton Marque Eaton Tripp Lite Modèle de produit PDUMV30HVNETLX Nom de produit Unité de distribution d'alimentation PDUMV30HVNETLX 24-Outlet Nombre d'unités dans le pack 1 Type de produit Commutateur KVM
Détail du réceptacle 20 x IEC 60320 C13, 4 x IEC 60320 C19 Phase Single Phase Tension de sortie 230V AC Type de PDU Switched Type de Prise/Module Enfichable IEC 60320 C13, IEC 60320 C19
Conforme aux normes TAA Yes
Hauteur 70" Hauteur du rack 0U Largeur 2.2" Orientation de montage Vertical Profondeur 2.7"
Courant d'entrée 30A Tension d'entrée 230V AC Type de connecteur/prise NEMA L6-30P
Type de montage Rack Mount Type de protection Overload Protection
Garantie Limitée 2-Year
Caractéristiques NOM (Mexico); UL 60950-1 Certification environnementale RoHS Contenu de l'emballage - PDUMV30HVNETLX 5/5.5kW Single-Phase Switched PDU
- Configuration cable
- (24) Plug-lock inserts
- Rack-mounting hardware
- PDUMVROTATEBRKT mounting bracket accessory
- Owner’s manual
Pays d'origine TW Respectueux de l'environnement Yes
