Aperçu

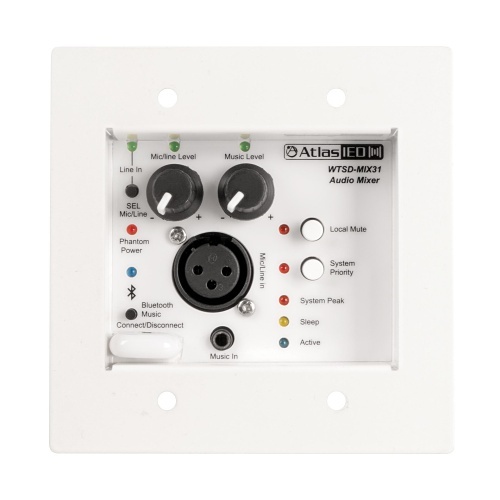

Model WTSD-MIX31K is a 3x1 Mic/line/Aux /Bluetooth Analog Mixer that features a balanced microphone/line input and an auxiliary 3.5mm and Bluetooth summed input with a balanced line output. The WTSD-MIX31K utilizes commercial grade Bluetooth technology featuring ultra-low noise levels, long range connectivity, no auto-connect and a quick disconnect bump feature. The Bluetooth Discovery ID name can be customized using the installers renaming app. Selection between mic or line level for the XLR input is done via front panel switch, accessed thru a pinhole. The high gain mic inputs incorporate user enabled phantom power for condenser microphones and a 125Hz low cut filter to eliminate unwanted low frequency interferences. A local mute button mutes output to the bus and a system priority button can mute building wide BGM systems to isolate the room. An adjustable VOX feature allows for AUX input background audio to be muted when announcing is present. The AUX input is a stereo 3.5mm jack and is electronically summed to achieve the best audio performance. Separate level controls for each input provide control for the audio mix needed.
Principales caractéristiques
- Indoor/Outdoor Use
- Power Supply and WTSD-PWBOB interface included
- XLR Balanced Mic or Line Input with Individual Level Controls
- 3.5mm Stereo Actively Summed Input with Level Control
- Commercial Grade Bluetooth Input with Level Control
- The Bluetooth Discovery ID Name can be Customized
- Fits Most 2-Gang Boxes
- Uses Industry Standard Cat5 or Cat6 Cable
- High Gain Balanced Line Output for Applications of 400'
- Linkable with other WTSD Mixers on the same BUSS
Renseignements généraux
Name: AtlasIED WTSD-MIX31K Indoor / Outdoor Analog Wall 3x1 Mic / Line / BT / AUX Mixer with Optional Dante Audio Network Interface
Category:
UPC Code: 612079663491
Country of Origin: . Country of origin is subject to change.
Spécifications
ADI Numéro du produit V4-WTSDMX31K Code fabricant WTSD-MIX31K
Impédance 10 kohms
Réponse maximale en fréquence 20 kHz Réponse minimale en fréquence 20 Hz
Couleur White Hauteur 4.37" Largeur 4.34" Profondeur 2.5"
Tension d'entrée 24V DC
Garantie Limitée 3 Year
