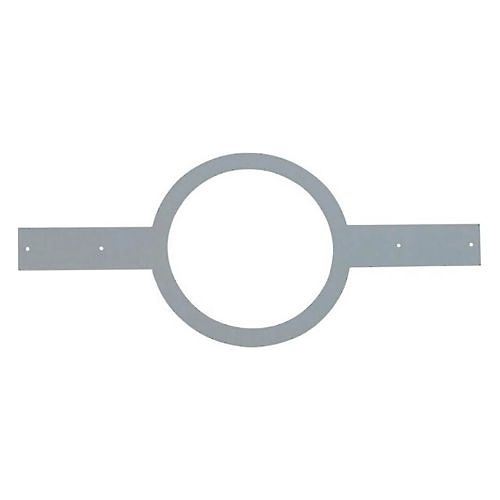

Image of XQ-MTC426NC

JBL Professional MTC-426NC New Construction Bracket for Control 424LP, 426C/T, 426LP and 426C/T-LS

MTC-426NC|XQ-MTC426NC

JBL Professional MTC-426NC New Construction Bracket for Control 424LP, 426C/T, 426LP and 426C/T-LS

MTC-426NC|XQ-MTC426NC

Se connecter prix revendeur

Devenir client ADI
Image of XQ-MTC426NC

JBL Professional MTC-426NC New Construction Bracket for Control 424LP, 426C/T, 426LP and 426C/T-LS

MTC-426NC | XQ-MTC426NC

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

In most cases, no brackets other than the ones included with your Control400 series speaker are required. Everything needed for most installations of these loudspeakers is provided with your Control Contractor ceiling speaker. However, a particular procedure that is sometimes used for installation into sheetrock (typically gypsum board) can be facilitated by the use of JBL’s optional pre-installation brackets before the sheetrock is installed. The pre-installation bracket provides a bracket to which wiring can be strapped in-place behind the sheetrock. It can function as a cutout template when many cutouts are to be made in a production-line style installation. And it can reserve a location in the ceiling prior to the sheetrock getting installed. The optional NC NEW-CONSTRUCTION BRACKET is made of flat sheet metal, with wings to attach to the building structure. Holes are drilled for nails or screws at 16" (406mm) and 24" (610mm) on-center. Additional holes can be drilled by the installer at other spacings up to a maximum of 24-3/4" (630mm) apart. Sheetrock installs after the bracket gets installed, and the bracket provides a template for blind cutout of the hole in the sheetrock. For this process, the sheetrock is typically cut with a router-type cutting tool, using the bracket ring as a cutout guide.

Principales caractéristiques

  • Compatible with Control 424LP, 426C/T, 426LP, 426C/T-LS
  • Facilitates installation in sheetrock
  • Functions as a cutout template
  • Reserves ceiling location pre-sheetrock
  • Made of flat sheet metal with wings
  • Holes for nails/screws at 16" and 24" on-center
  • Supports additional hole drilling up to 24-3/4"
  • Provides template for blind cutout in sheetrock

    • Renseignements généraux

    Name: JBL Professional MTC-426NC New Construction Bracket for Control 424LP, 426C/T, 426LP and 426C/T-LS
    Category:
    UPC Code:
    Country of Origin: . Country of origin is subject to change.
