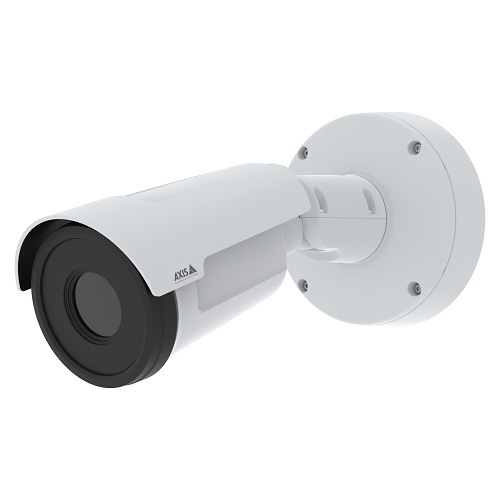

AXIS Q1961-TE Thermal Camera, 7mm Fixed Lens, 8.3 fps, IP66, IP67
AXIS Q1961-TE Thermal Camera, 7mm Fixed Lens, 8.3 fps, IP66, IP67
AXIS Q1961-TE Thermal Camera, 7mm Fixed Lens, 8.3 fps, IP66, IP67
02173-001 | Z4-02173001
Please sign in to view pricing and availability and to add to cart.
Product Overview
Ideal to improve operational efficiency, this thermometric camera lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You’ll know if your equipment is close to overheating and can act to avoid unwanted downtime. Supporting up to 10 configurable polygonal detection areas, you can monitor for specific temperature levels or change-rates. With early fire detection analytics, it’s possible to monitor early signs of fire with smart filtering of potential false alarms. AXIS Q1961-TE includes built-in cybersecurity features to help safeguard your system. Furthermore, edge-to-edge technology lets you connect network speakers to enable audio alarms.
Main Features
General Information
Specifications
ADI Numéro du produit Z4-02173001 Brand Name AXIS Communications Manufacturer Part Number 02173-001 Product Name AXIS Q1961-TE 7mm 8.3 fps Product Series Q19 Product Type Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.18 Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.18 Maximum Frame Rate 8.3fps Minimum Focal Length 7mm Video Formats H.264, H.265, MJPEG, MPEG-4 Video Resolution 384 x 288
Image Sensor Type Uncooled Microbolometer
Ingress Protection Rating IP66, IP67
Image Sensor Size 384 x 288 Maximum Video Resolution 768 x 576
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 1 Operating Temperature (T-T) -40-104°F
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, VCCI Class A
Focal Length 7mm Maximum Focal Length 7 mm
Memory Card Supported Yes
ADI Part Number Replaces Z4-0647001 Model Number Replaces 0647-001
Color White Durability Corrosion Resistant, Dustproof, Impact Resistant, Waterproof Weight 3.09lb
Input Voltage 10V DC, 28V DC Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Diameter 5.2" Length 10.7"
Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Active Tampering Alarm, Audio Detection, Auto Gain Control, Electronic Image Stabilization, Fire Detection, Heater, Mirror, Motion Detection, Privacy Masking, SD Card Local Storage Impact Protection Rating IK10 Indoor/Outdoor Outdoor
