AXIS S3016 16-Channel Recorder with Powerful PoE Switch, 32TB
AXIS S3016 16-Channel Recorder with Powerful PoE Switch, 32TB
AXIS S3016 16-Channel Recorder with Powerful PoE Switch, 32TB
S3016 | Z4-02352004
Please sign in to view pricing and availability and to add to cart.
Product Overview

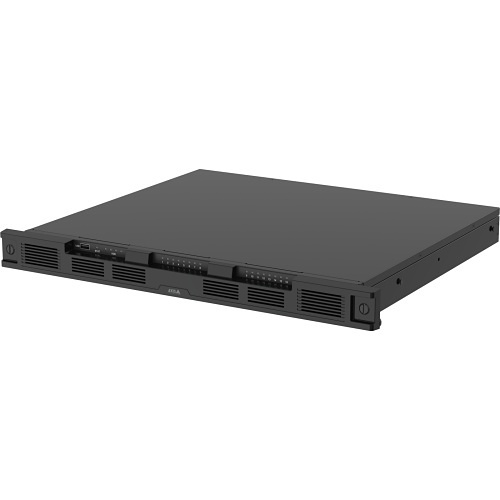

AXIS S3016 Recorder is a 1U rack recorder with an integrated PoE switch for up to 16 devices and a maximum of PoE class 4 per port. It provides reliable recording thanks to the four surveillance-grade hard drives and different RAID levels. This high-performance recorder offers a gigabit switch for connecting network devices and a 2.5 gigabit uplink for video recordings in ultra-high definition and includes a 5-year warranty. The recorder can be used in single-site, multi-site systems and for expanding storage and network in existing systems. It is compatible with both AXIS Companion as well as AXIS Camera Station video management software and mobile app.
Main Features
General Information
Specifications
ADI Numéro du produit Z4-02352004 Bandwidth 256Mbps Brand Name AXIS Communications Manufacturer Part Number 02352-004 Product Line S Product Name AXIS S3016 32 TB US Product Series S30 Product Type Recorders Supported Network Protocols IPv6 USGv6|NIST SP500-267
Number of Channels 16 Storage Capacity 32TB Video Formats H.264, H2.65, MPEG-4
Connectivity Technology Wired
Ingress Protection Rating IP20 TAA Compliant Yes
RAID Supported RAID 0|RAID 1|RAID 5|RAID 6|RAID 10
Operating Temperature (T-T) 32-113°F
Certifications CNS 15936, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A, VCCI Class A
Ethernet Yes
Hard Drive Capacity 32TB
Limited Warranty 5-Year
Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP20
